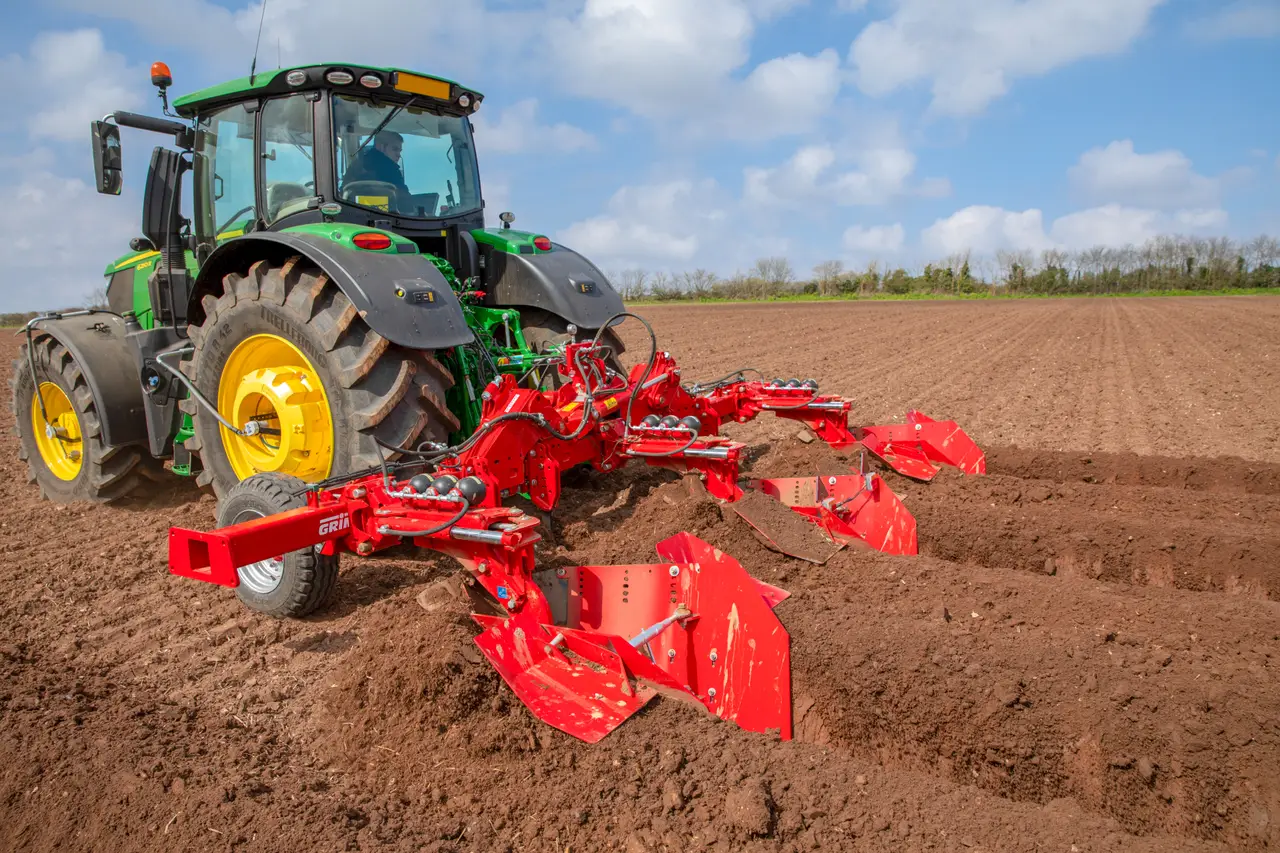

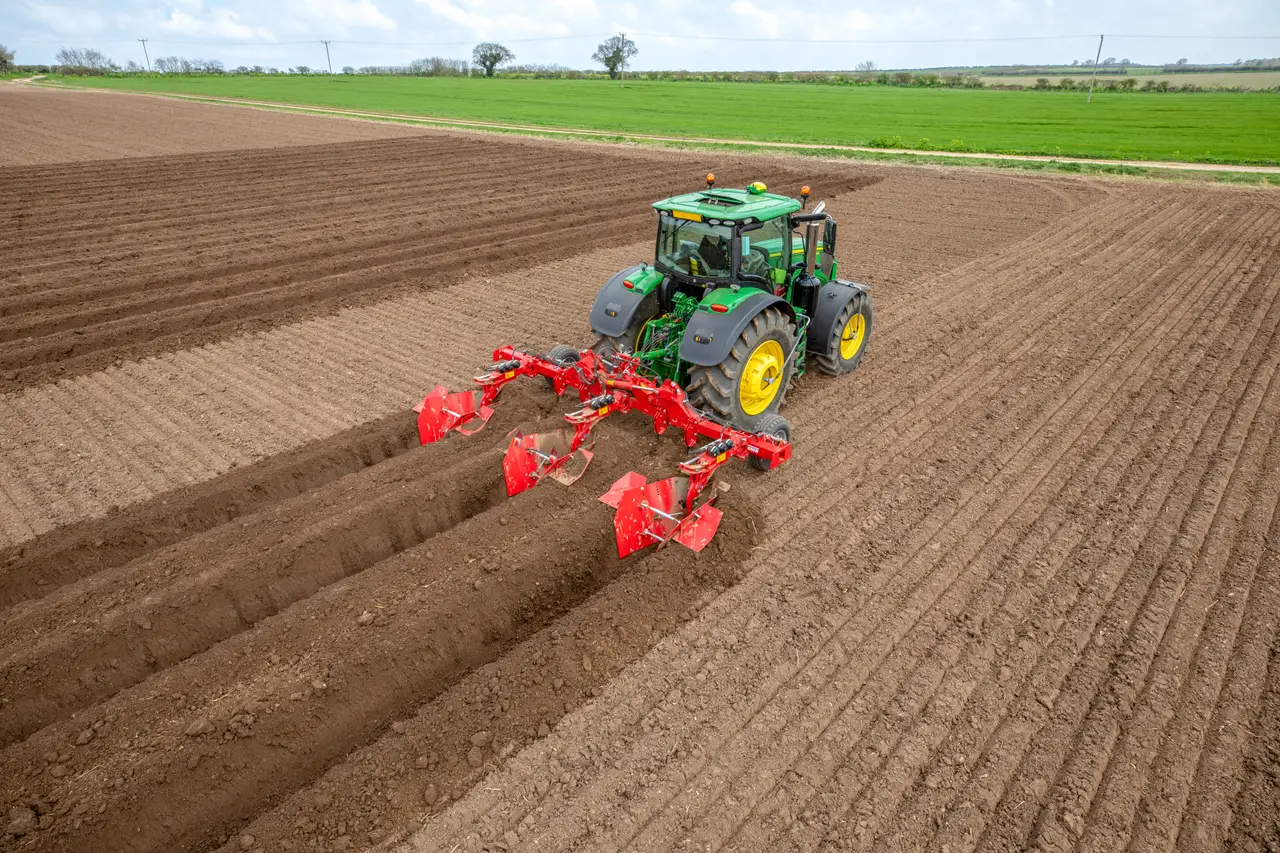

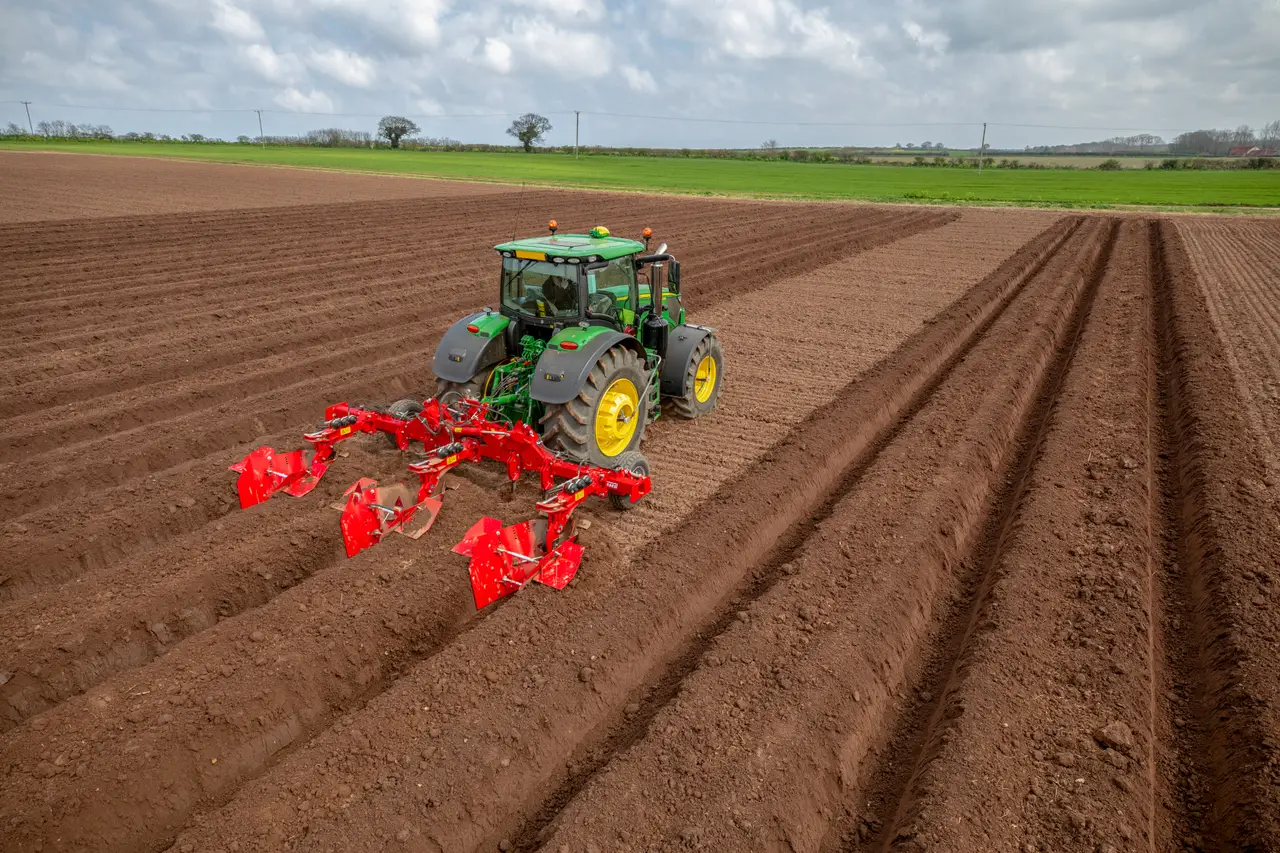

The first step of the separation system is to set up the beds. Two basic models are available for the various soil conditions. The large BF plough body for use especially on medium to heavy soils with big stones and large amount on clods.

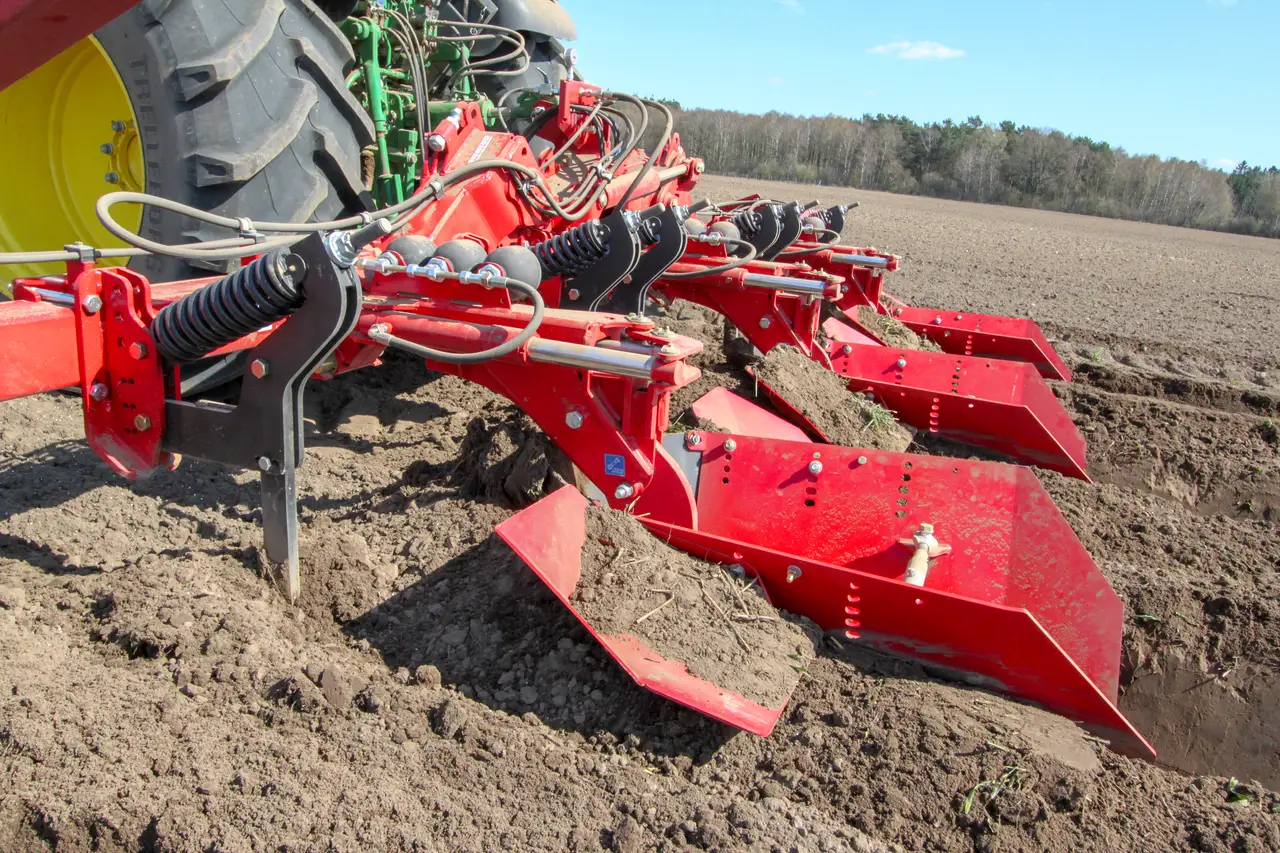

The BFL plough body with long side mouldboards is recommended for light soils to keep the loose soil in the bed, preventing it from falling back into the furrow. It is possible to combine both bodies with bed loosening tines to work in non-prepared soils.
Product Highlights
Highest stability
The hydraulic stone protection is developed with a decreasing release force is case of large stones, which may lift the plough bodies. Thus protecting all machinery components and reducing potential downtimes.

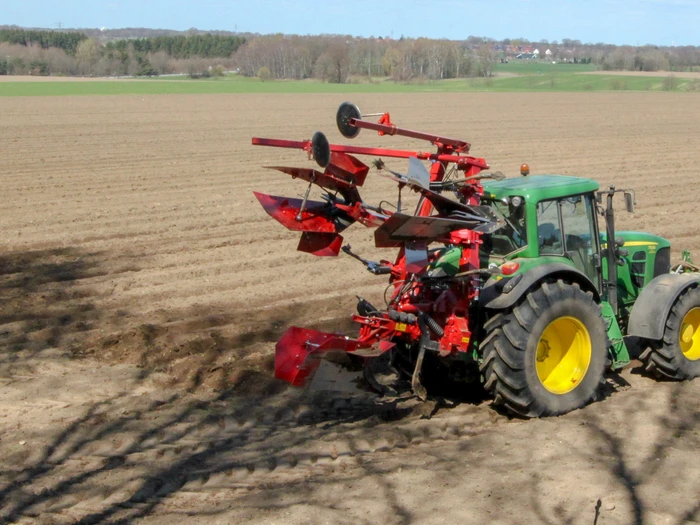

Fast movement between fields
Safe road transport and quick change from field to field due to a fast hydraulic frame folding mechanism.
For light to medium soils

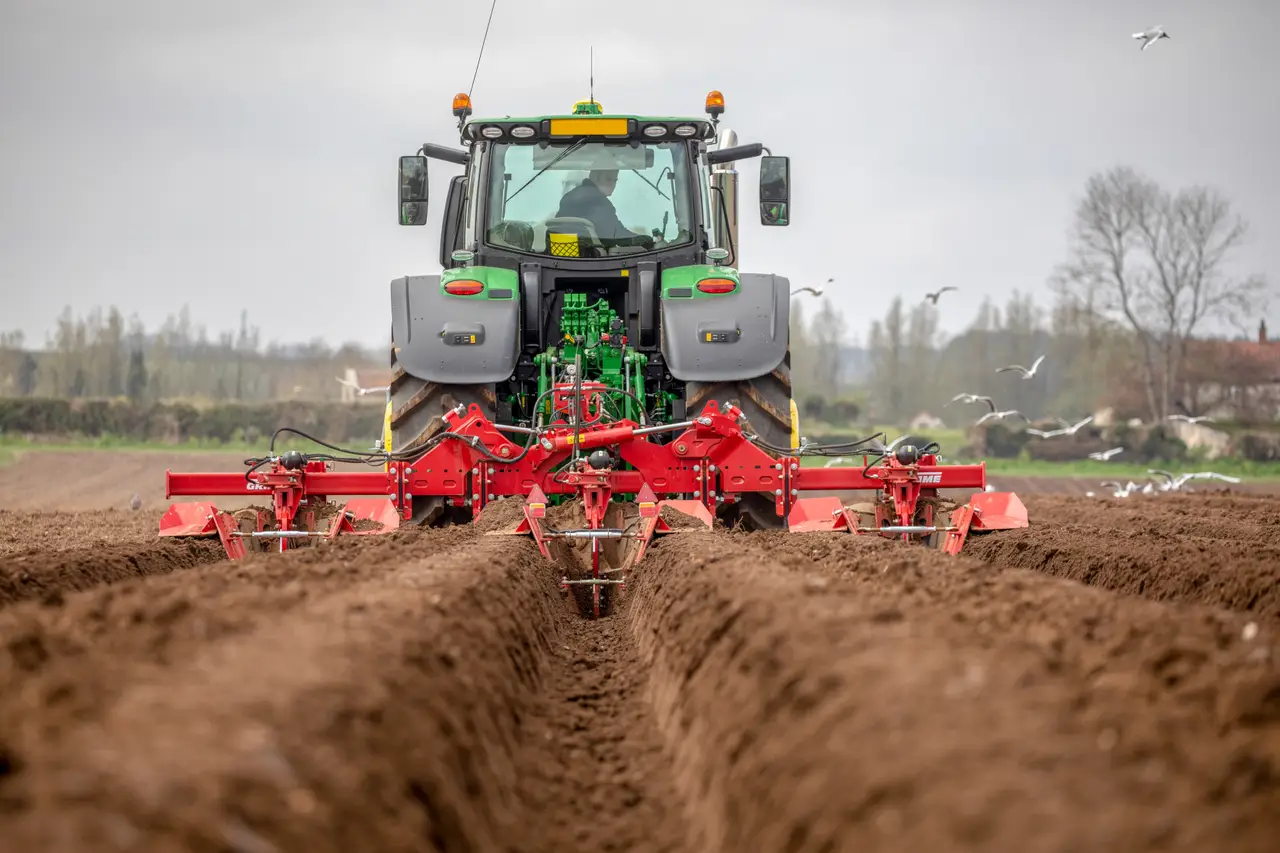

The BFL body with long mouldboard is recommended for track width up to 180 cm. BFL body with long mouldboard shapes "kit-kat" (trapezoidal) beds with a small furrow.

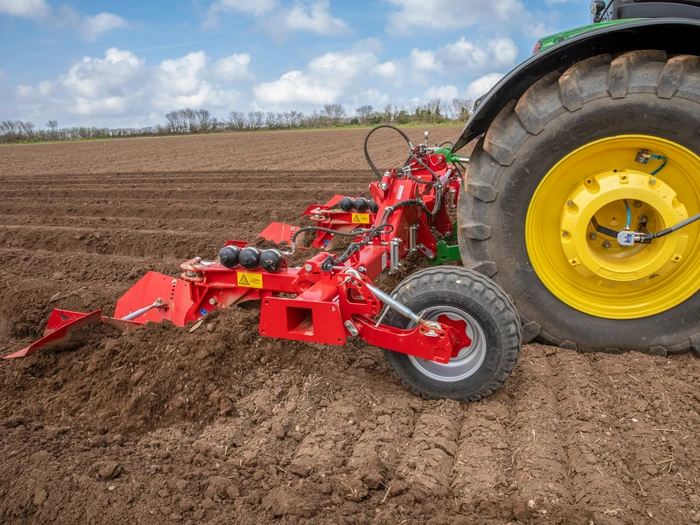

Even deep guidance
Two large support wheels ensure an even working depth.

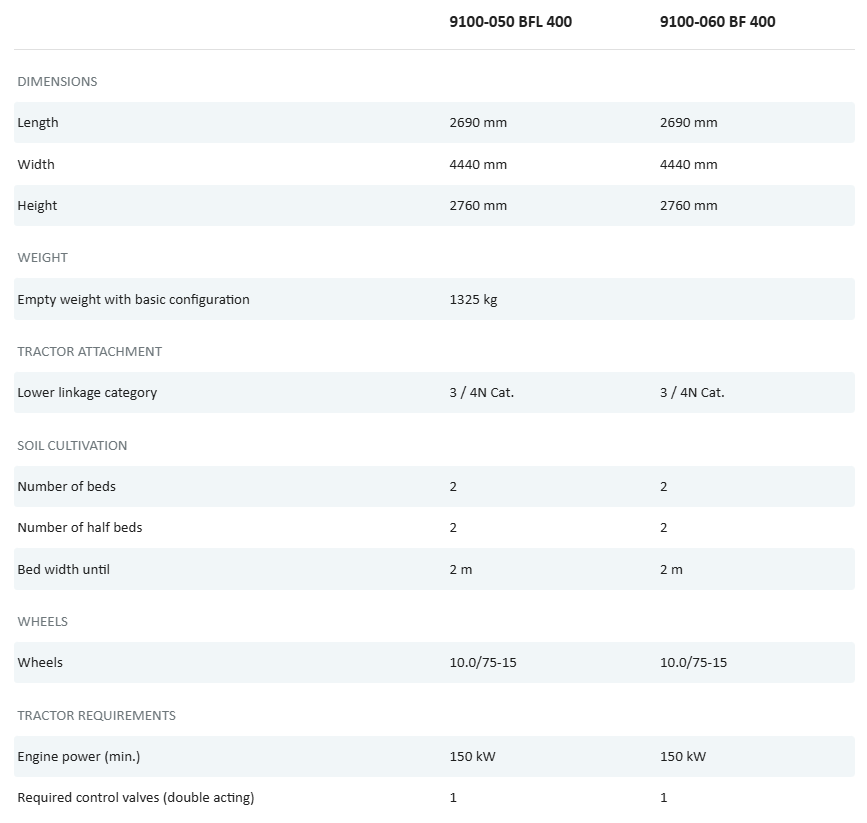

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
Standard equipment
Shearbolt stone protection

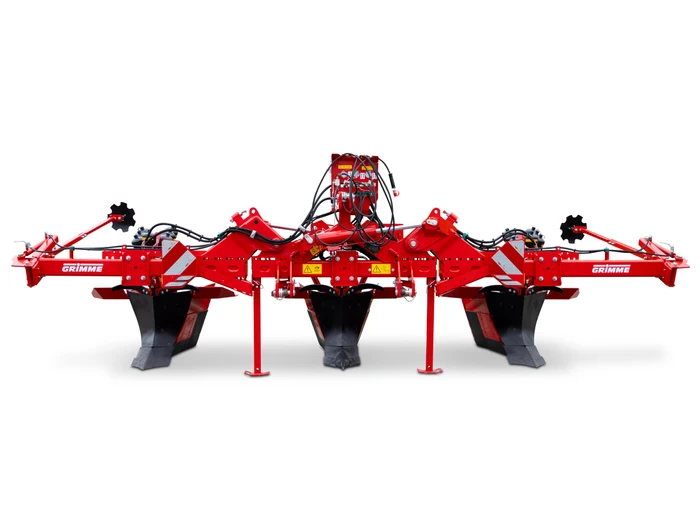

Proven GRIMME bedshapers with BF or BFL plough bodies

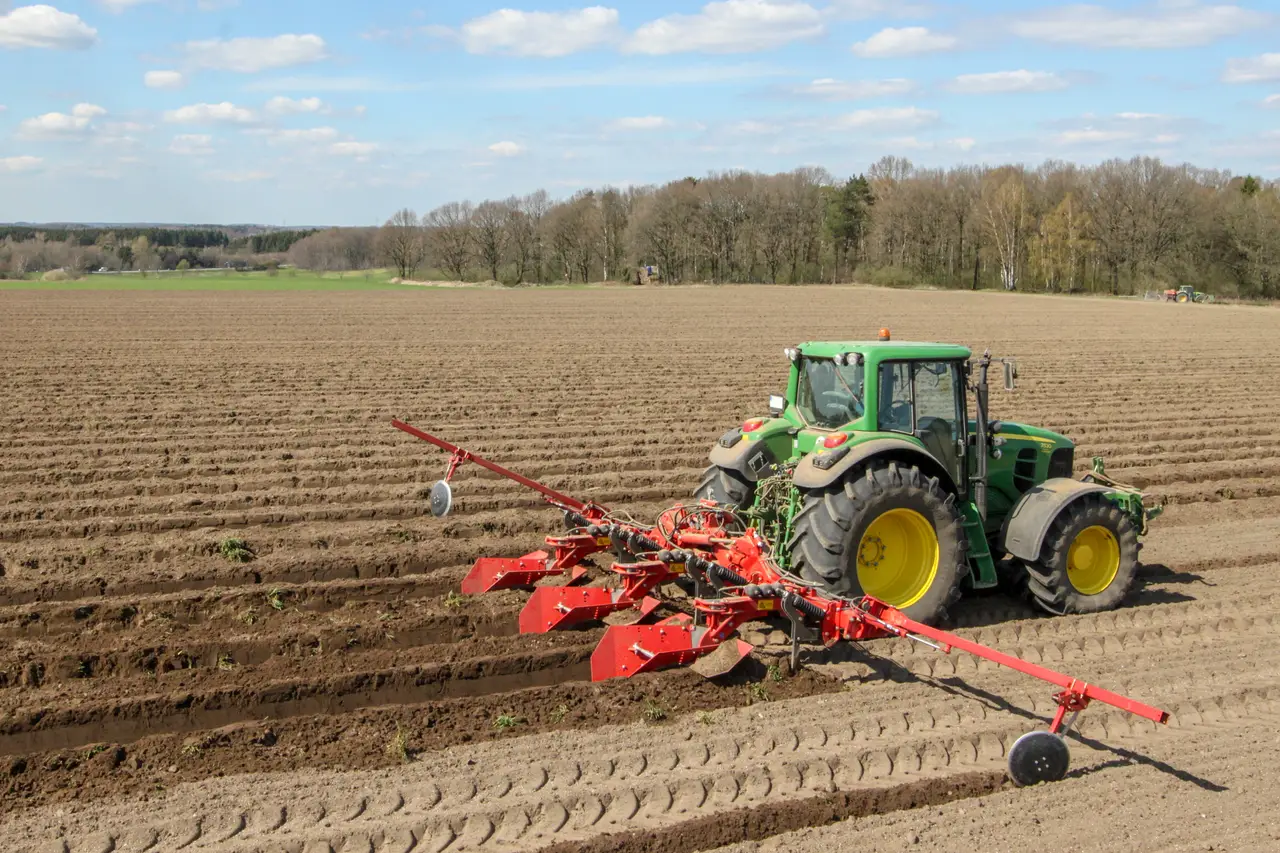

Hydraulically operated lane marker
Three-point linkage Cat. 3 / 4N
