In order to promote uniform ripening of the tubers, haulm reduction can be carried out two to three weeks before harvesting. In addition to preventing the transmission of viral infections from the haulm into the tuber, a good skin set on the tubers can be achieved to improve storability.

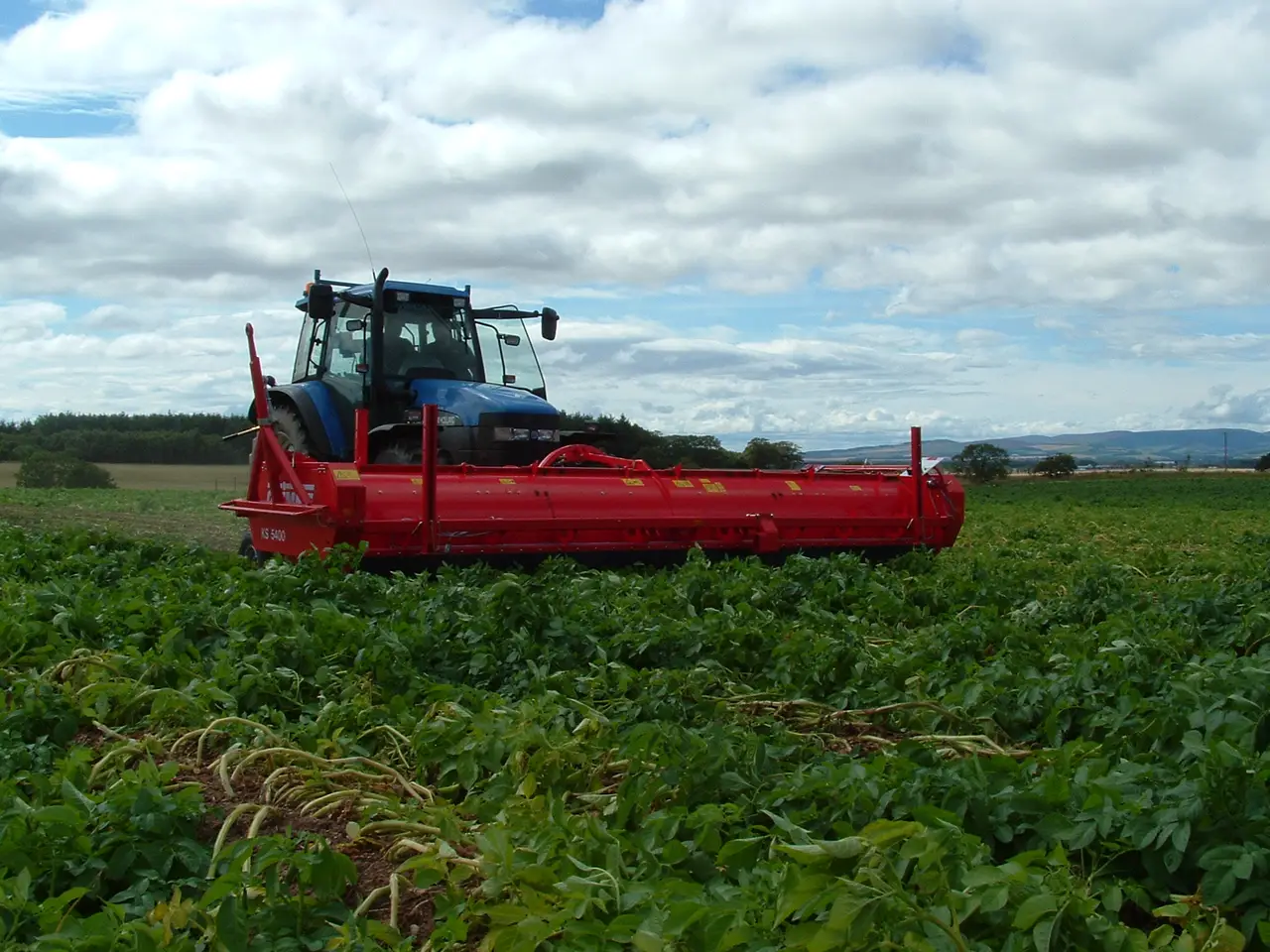

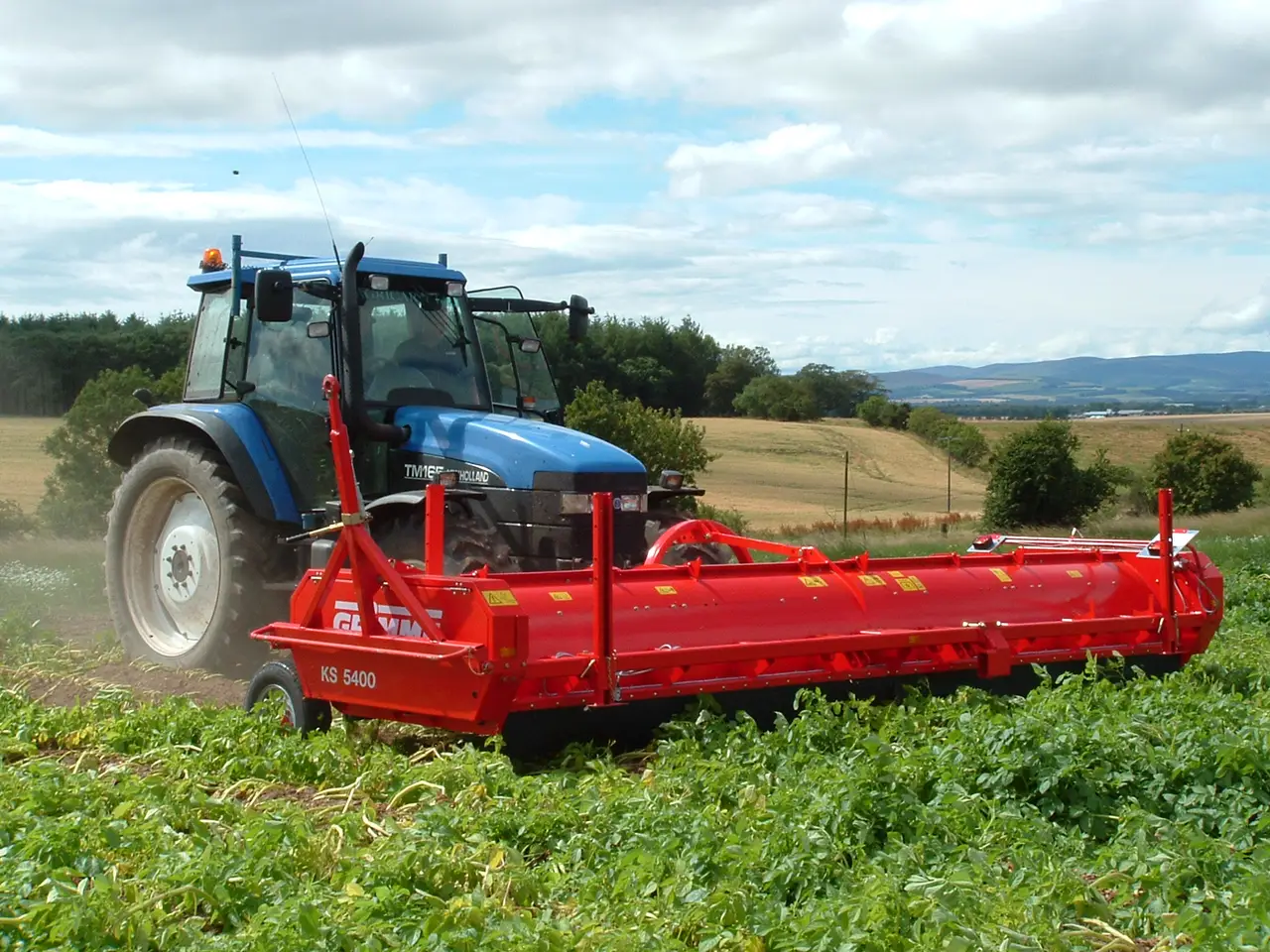

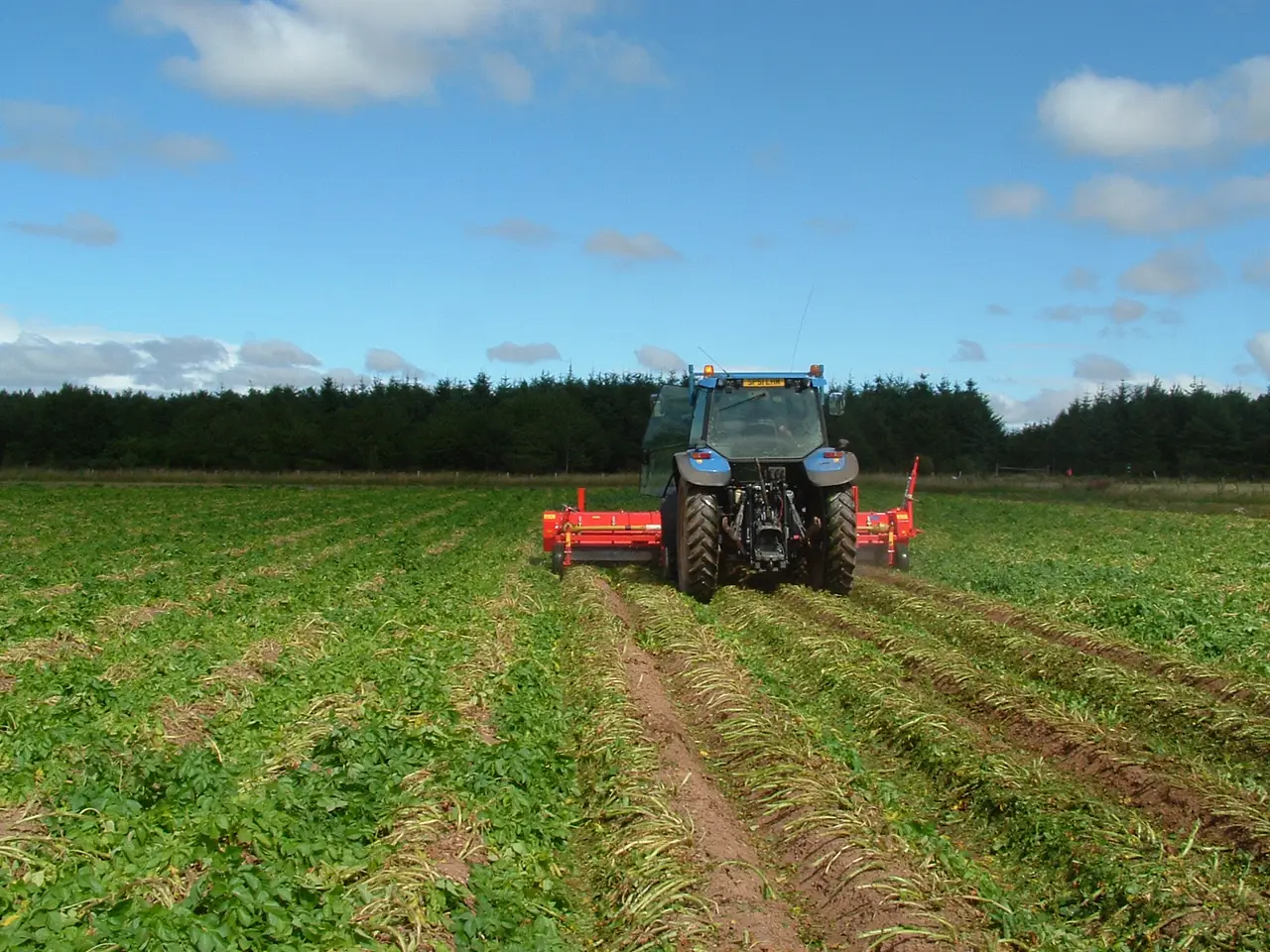

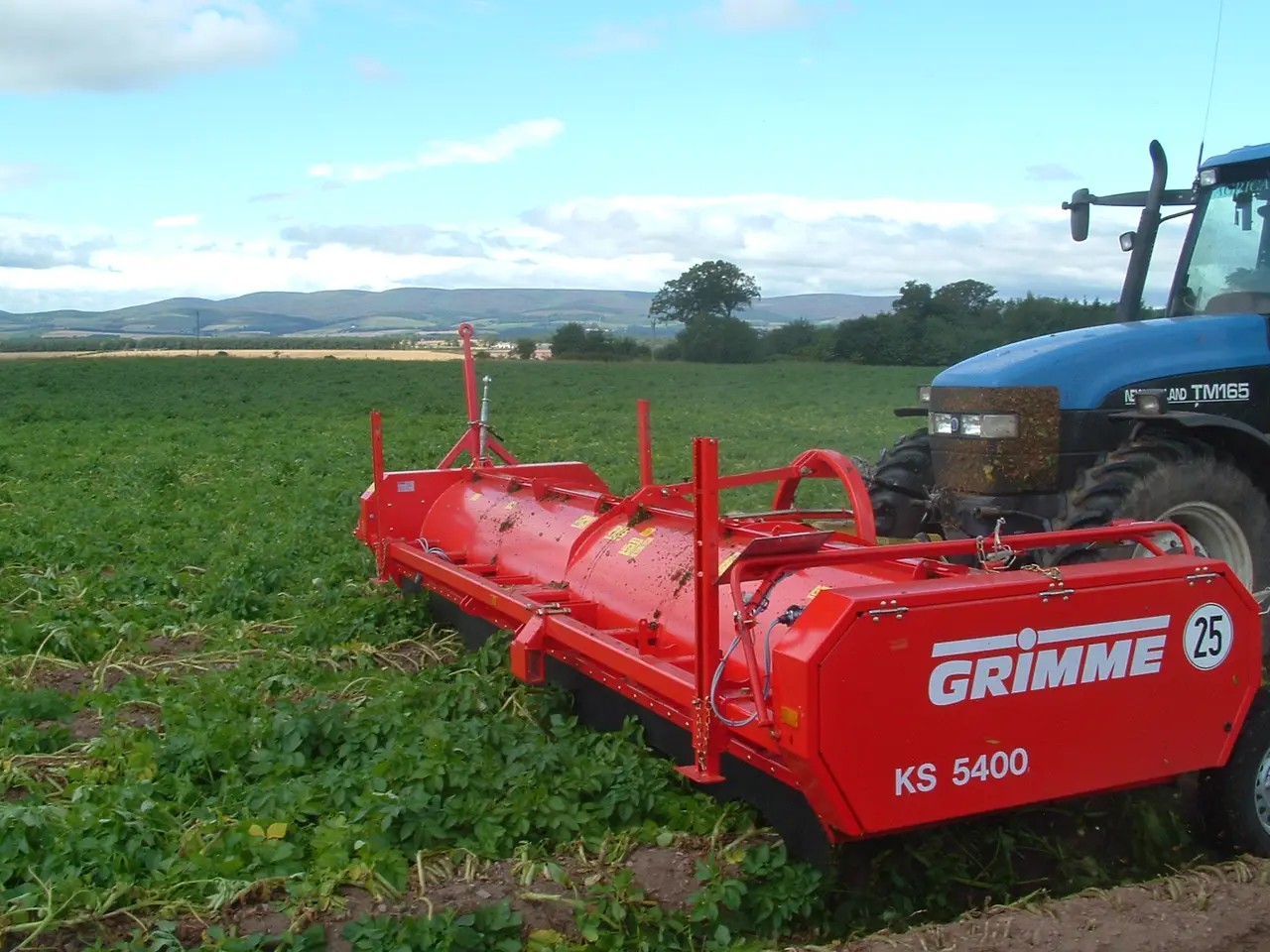

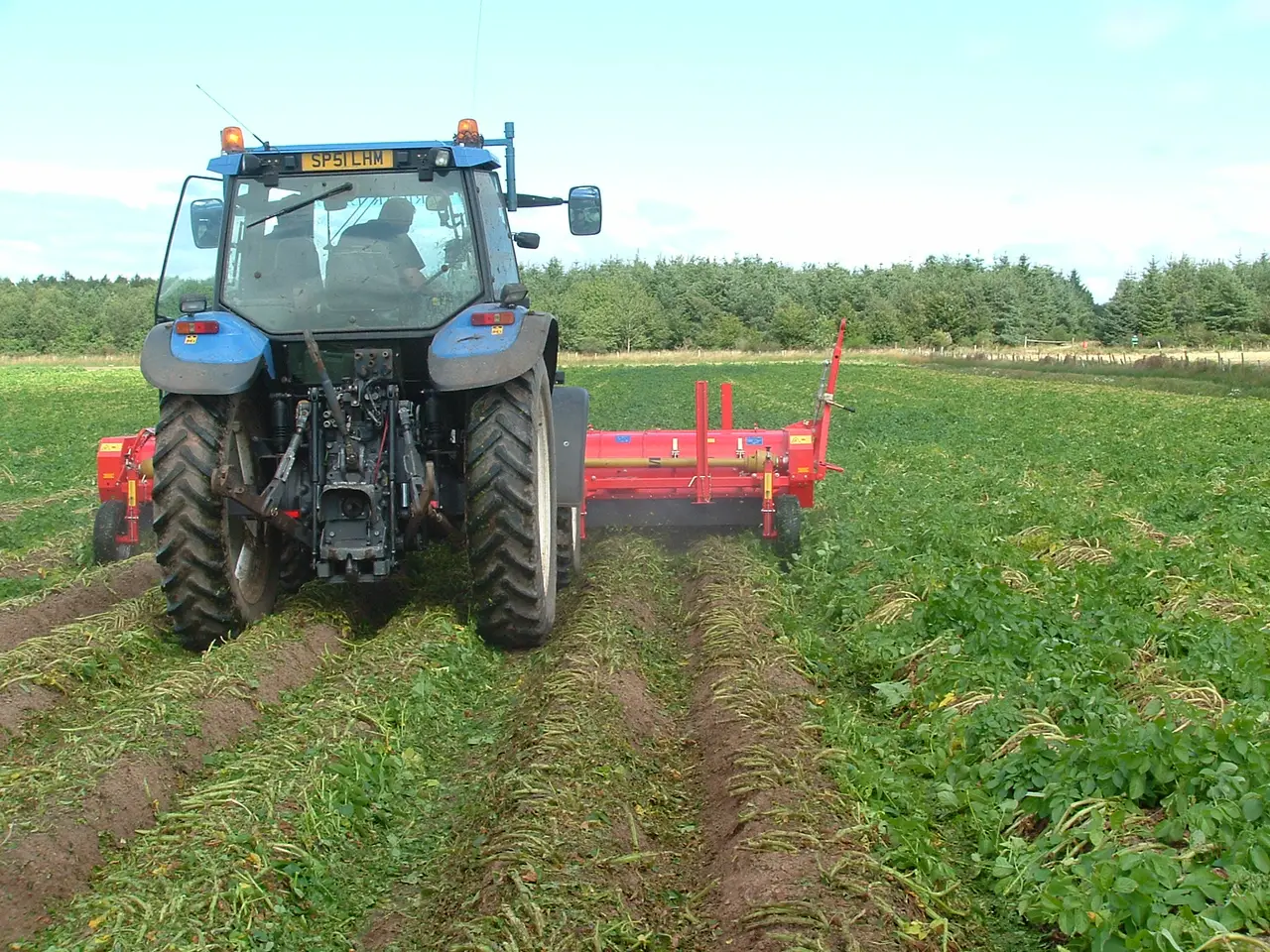

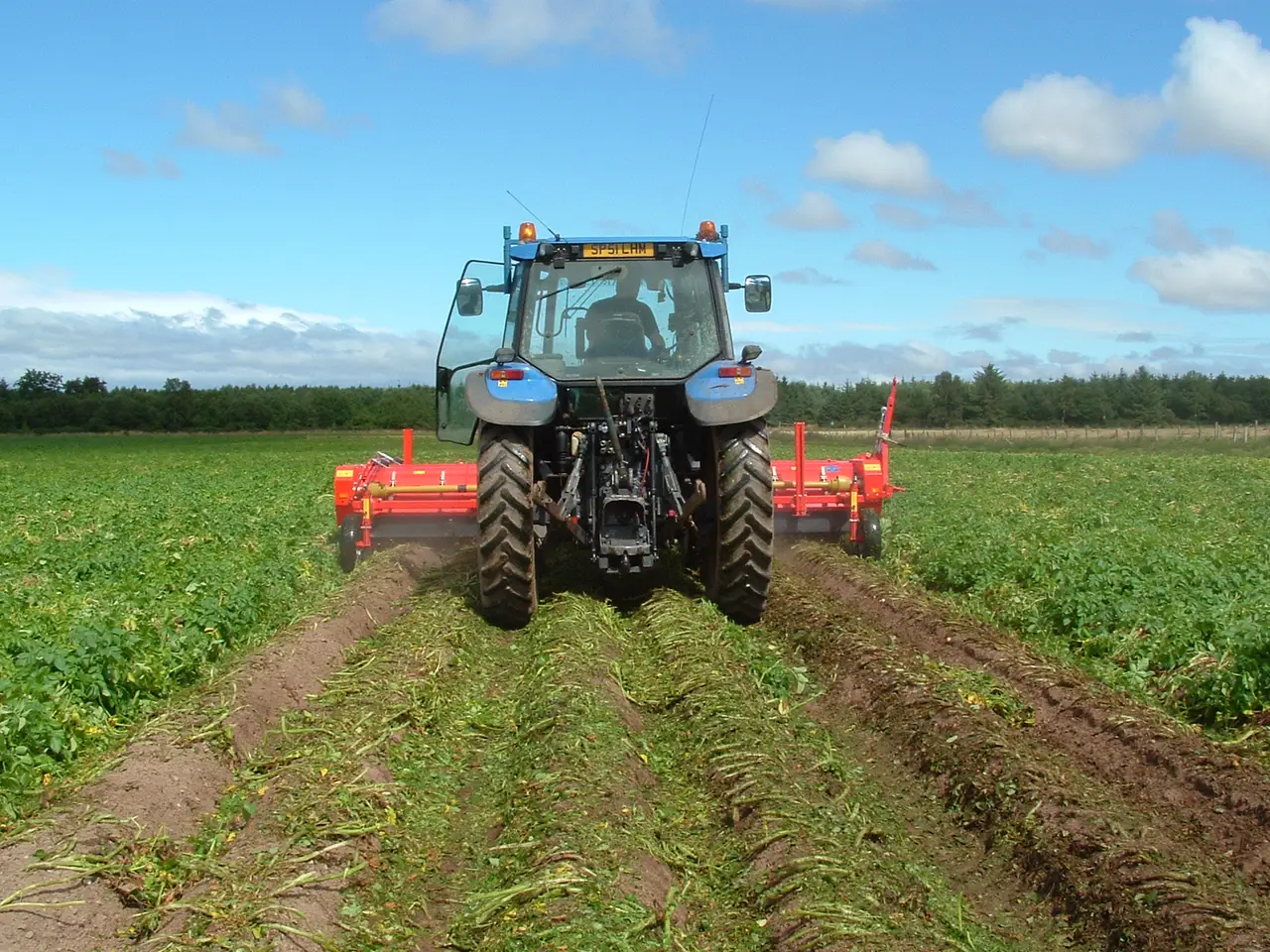

Instead of or as a supplement to chemical siccation, GRIMME offers a sustainable solution of haulm topping. By using a haulm topper, the haulm of the potatoes is mechanically crushed and deposited between the ridges. Careful placement of the haulm between the ridges is important. Especially if the stems of the potato plants are to be treated with other herbicides afterwards.
A further advantage is the reduced risk of blockage at the intake of the harvester and the resulting increased throughput capacity in case of extreme masses of haulm.
Product Highlights

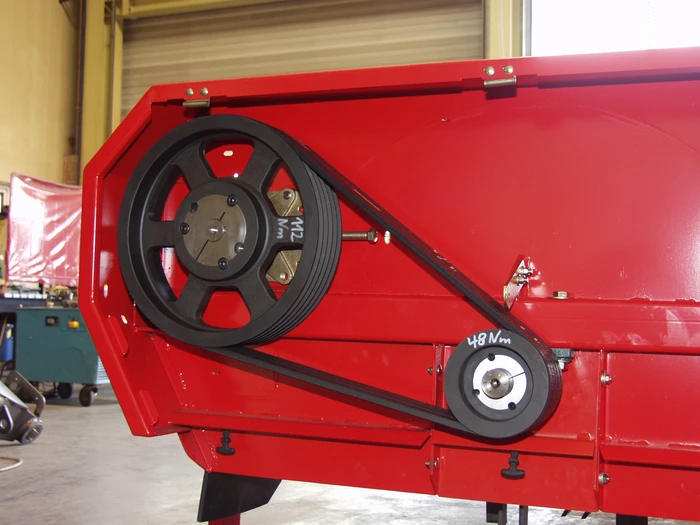

Uniform power transmission
The 5-fold V-belt drive ensures an even transmission of the required torque.
Cleaning made easy
Four large cleaning flaps allow easy cleaning of the inside.
Ideal force distribution to the flail shaft
The double sided drive of the strong gearbox ensures smooth running and relief of the material.

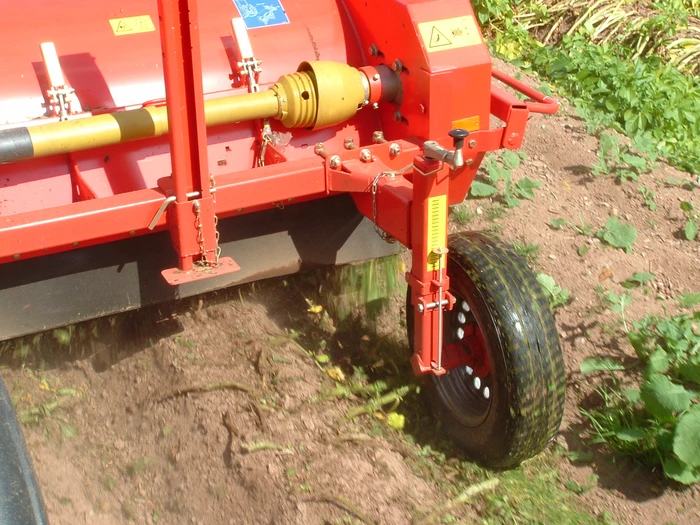

Mechanical height adjustable
The support wheels are equipped with a spindle for stepless height adjustment.

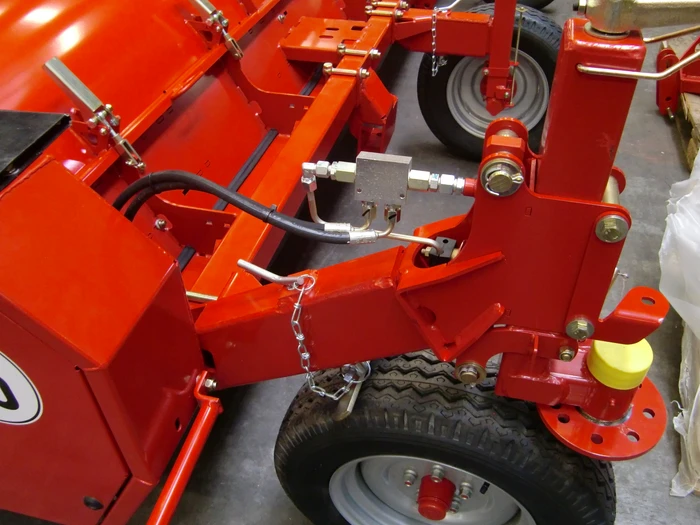

Hydraulically height adjustable
The two outer support wheels are equipped with an hydraulic cylinder for stepless height adjustment.

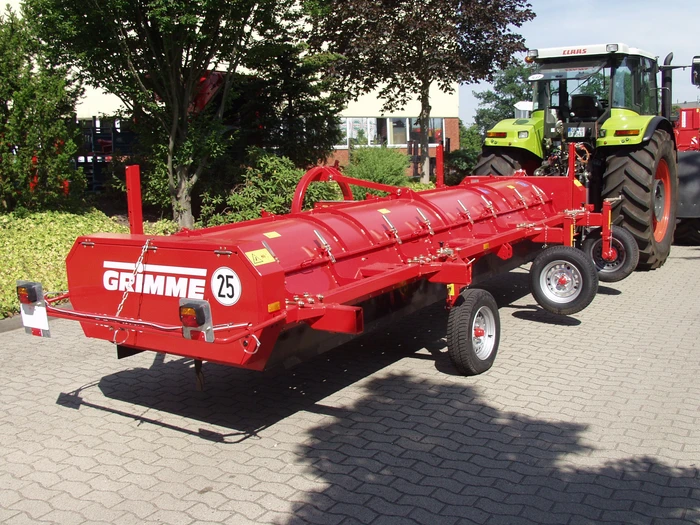

End tow kit
For safe transport width less than 3 m.

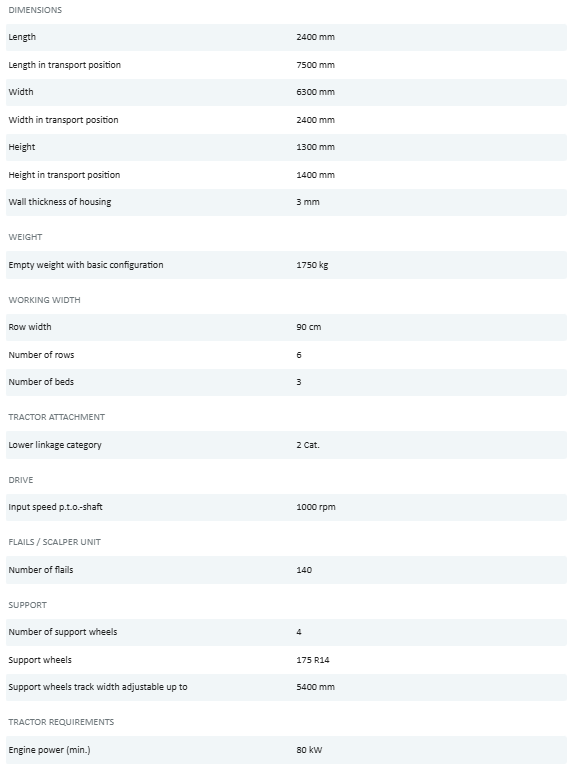

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
Standard equipment

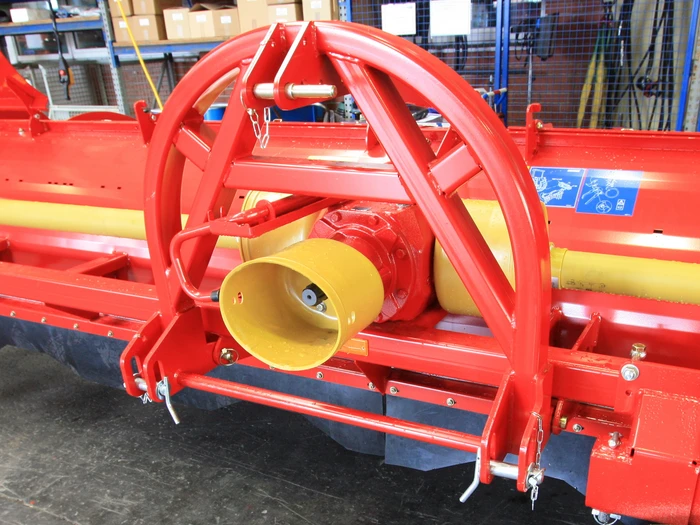

3-point linkage for front or rear mounting
Heavy duty V-belt drive (5 times)
Heavy duty gearbox to give 1250 rpm rotor speed at 1000 rpm PTO shaft drive
Double sided driv

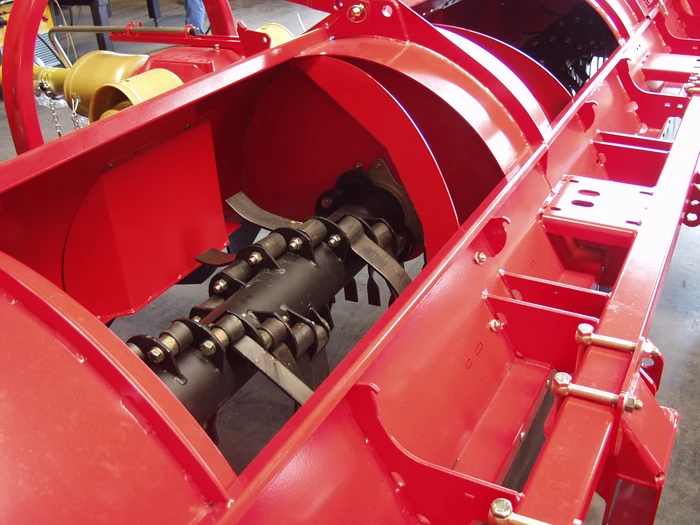

Twin driven flail shaft with free wheel
Number of flails: 140 pieces
Haulm discharge between the rows or to wheelings

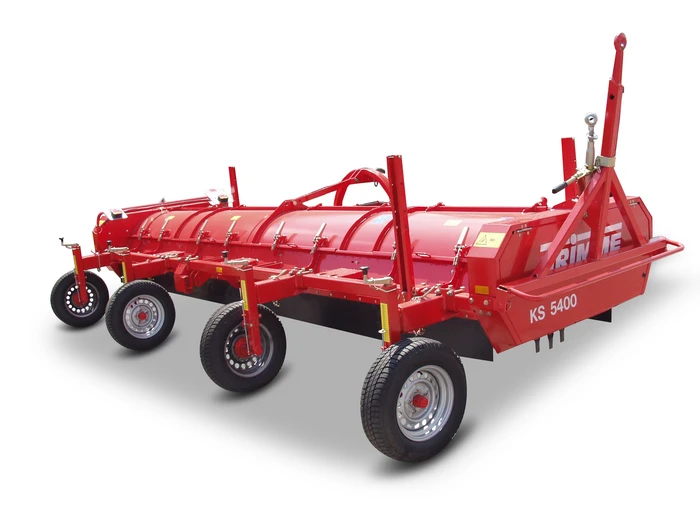

4 support wheels fixed or swivel (option)
