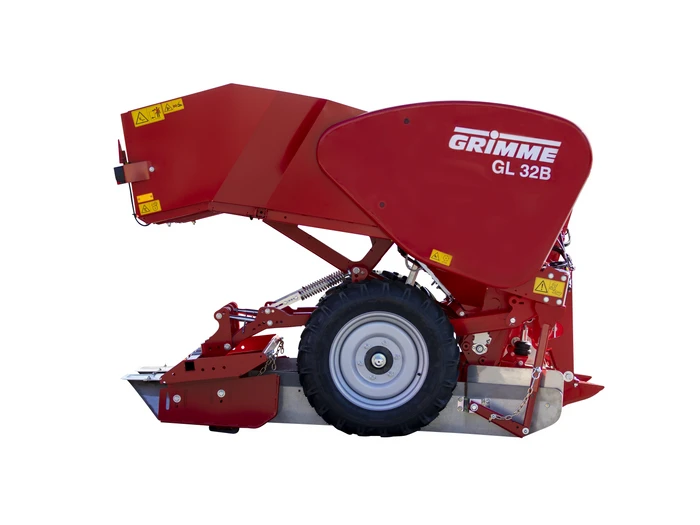

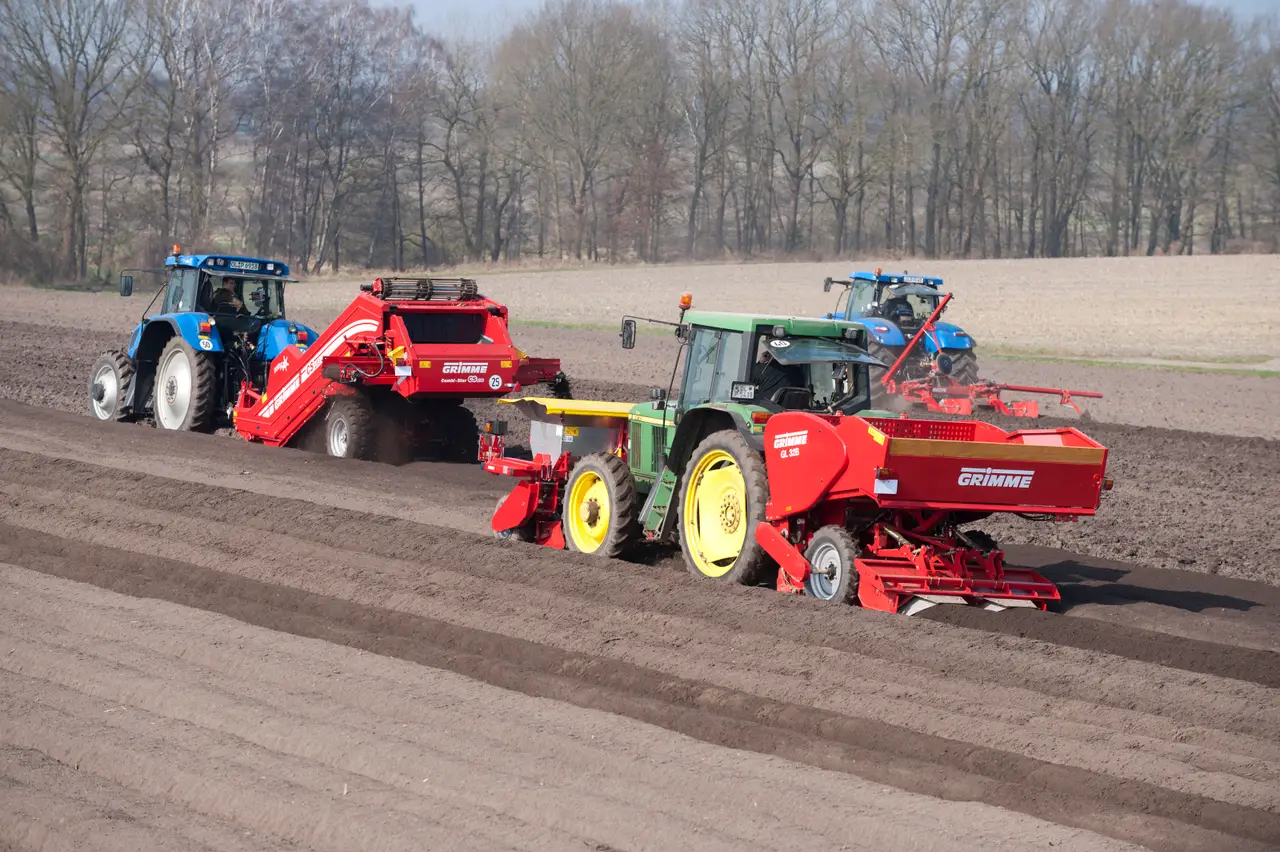

Cup Planter GL 32 B
The GL 32 B is designed both for conventional planting and for planting into beds. The GRIMME professional planting element is the right choice for a very precise and even planting distance.
Different setting options of the machine together with good calibrated seed enable a high planting speed. Soil retention plates under the machine keep the soil for ridge shaping.
Keeping enough soil for the following shaping board or cage roller.
Product Highlights

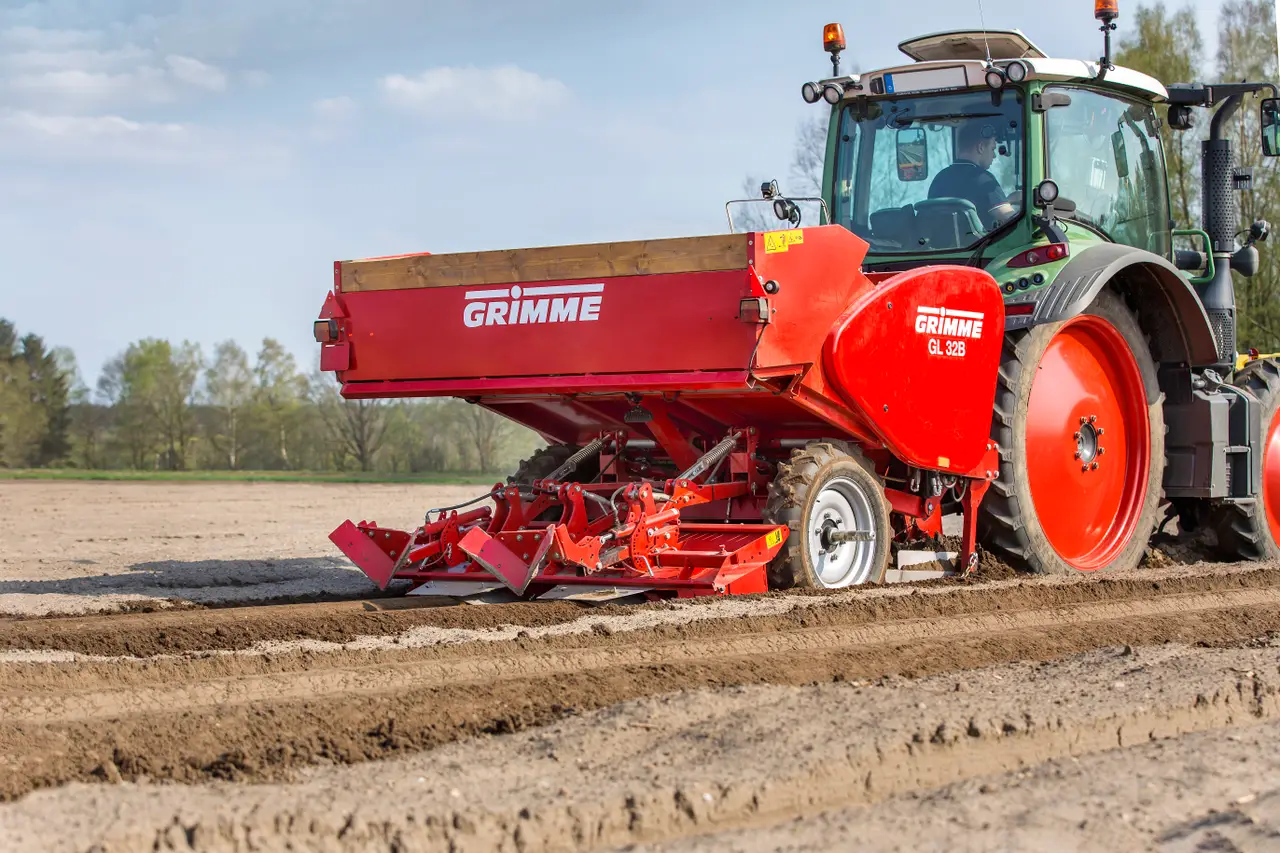

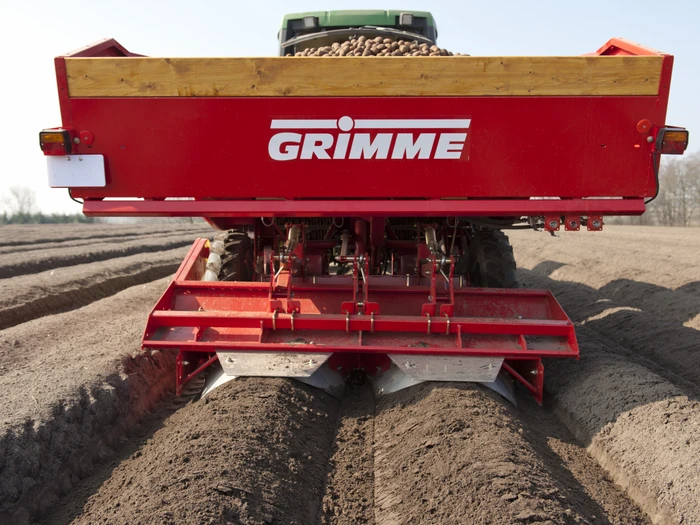

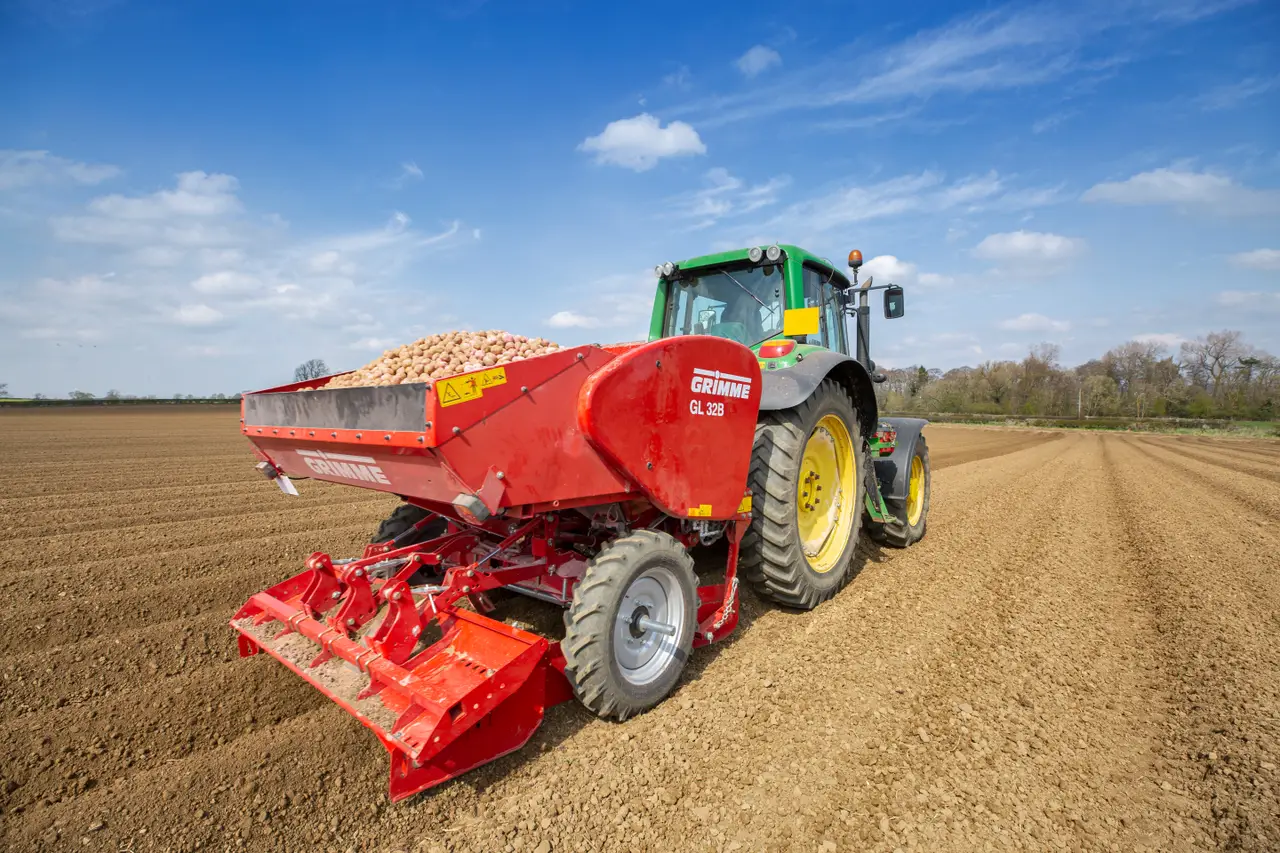

Well formed ridges
Shaping board for building ridges with specific characteristics from loose to firm soil with a smooth surface.
Large capacity
High output due to a large hopper of 2200 kg.

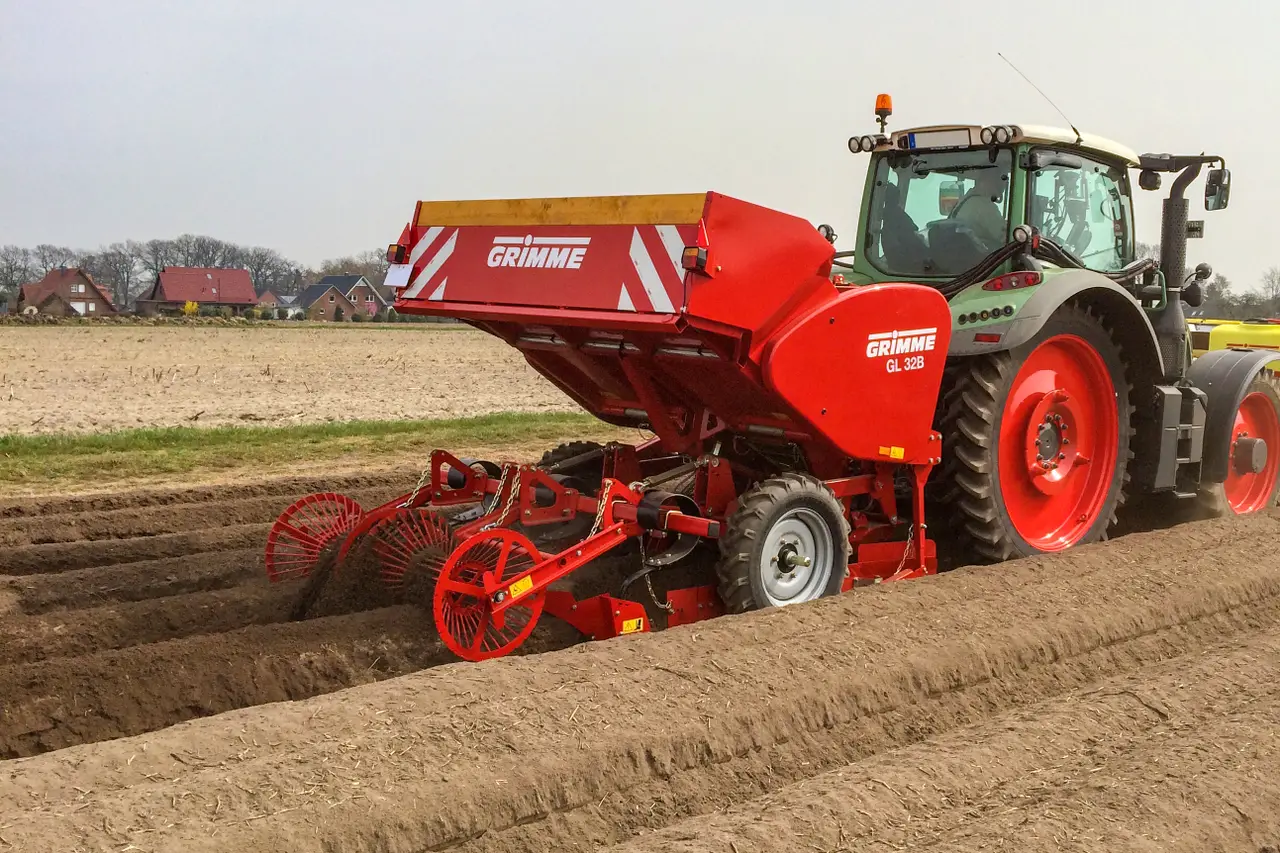

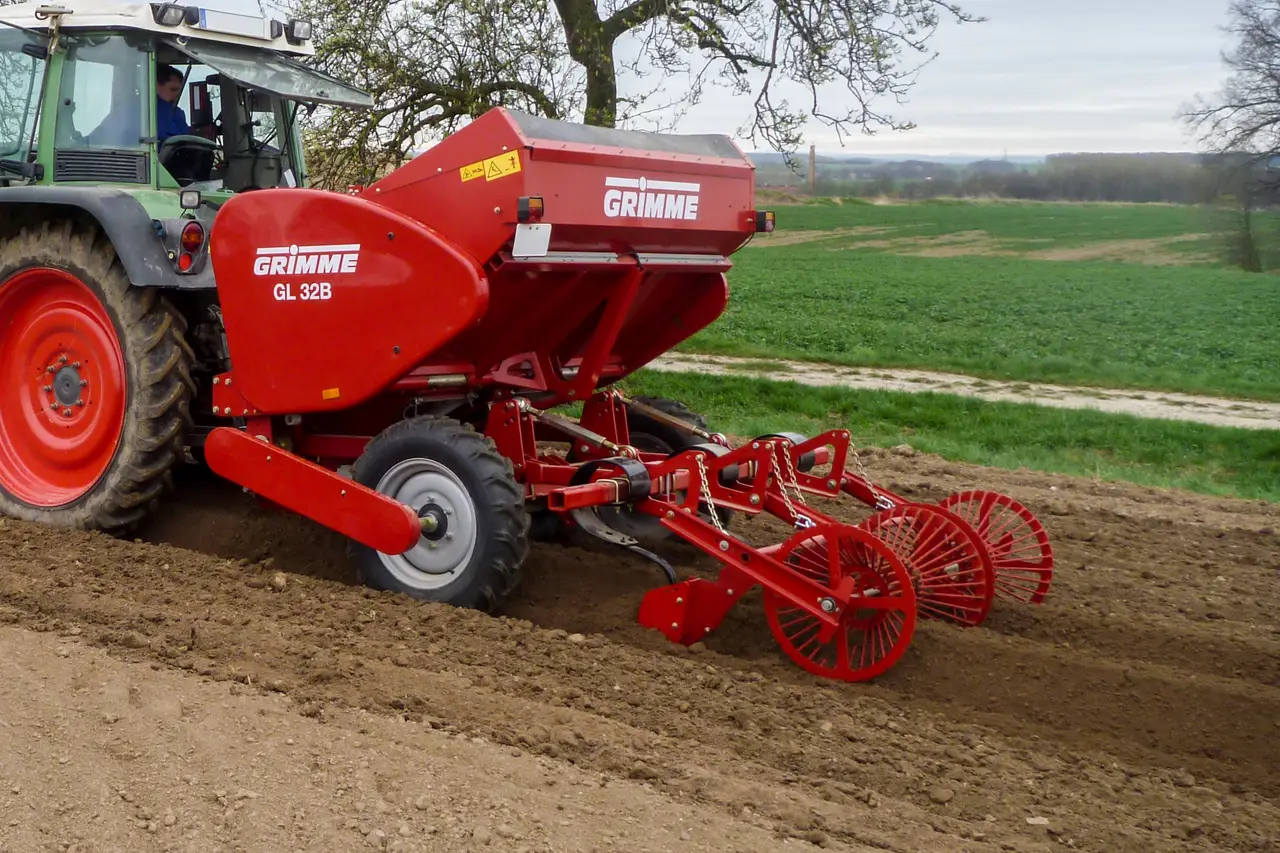

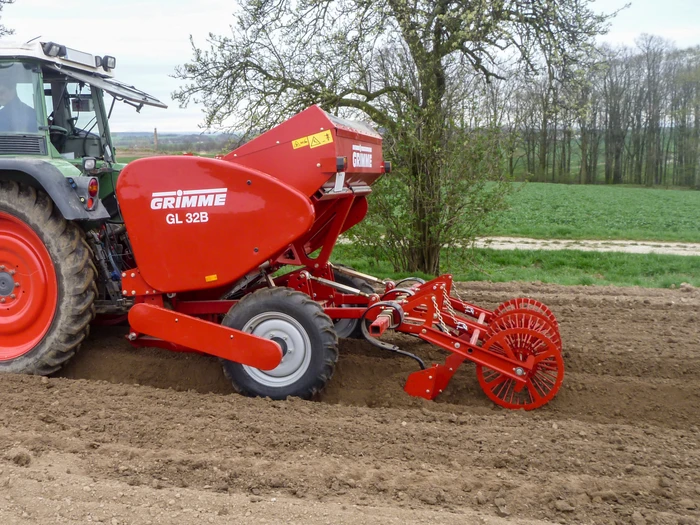

Ridge shaping on light soils
For an improved water absorption on light soils, cage rollers can be used in combination with spring-loaded ridging bodies.

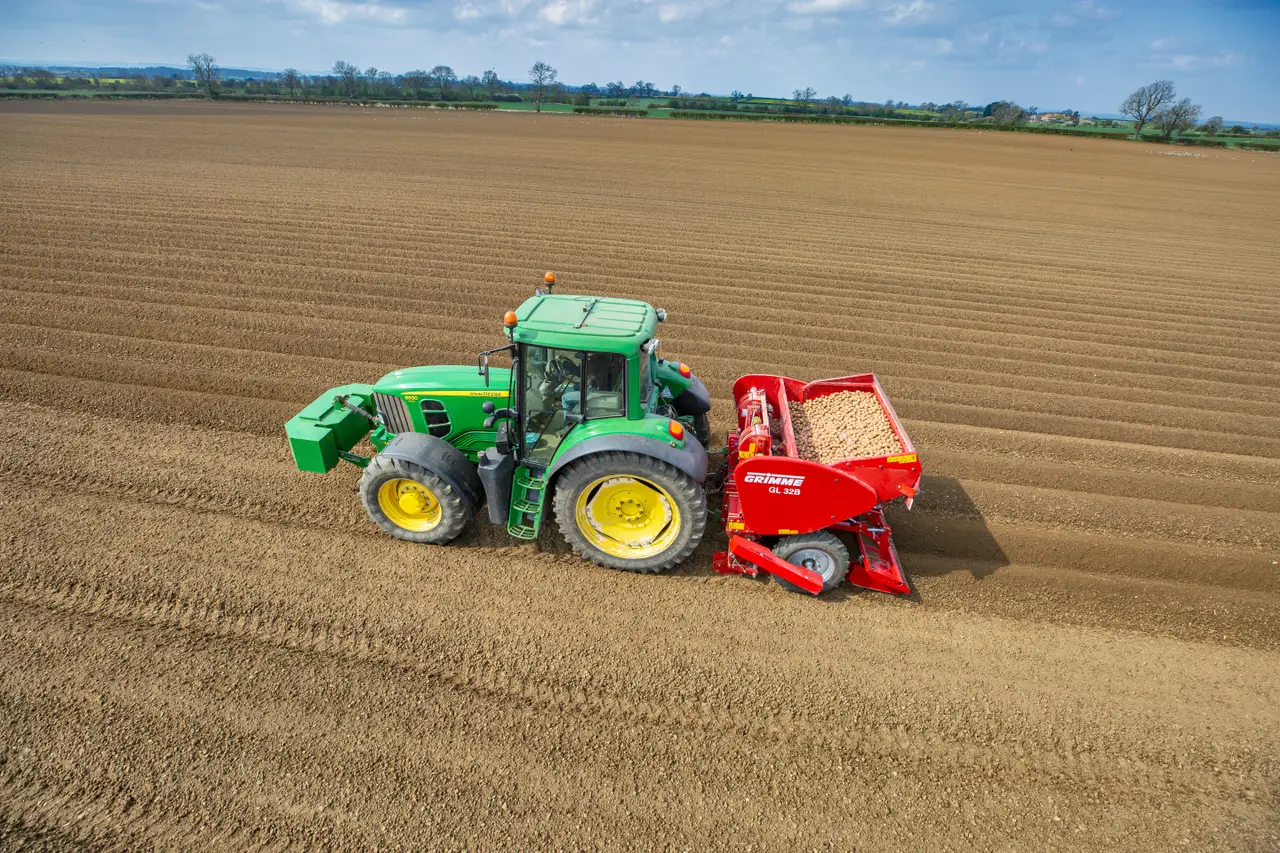

Agility and manoeuvrability
The compact design of the carried machine gives a high maneuverability on the headland.

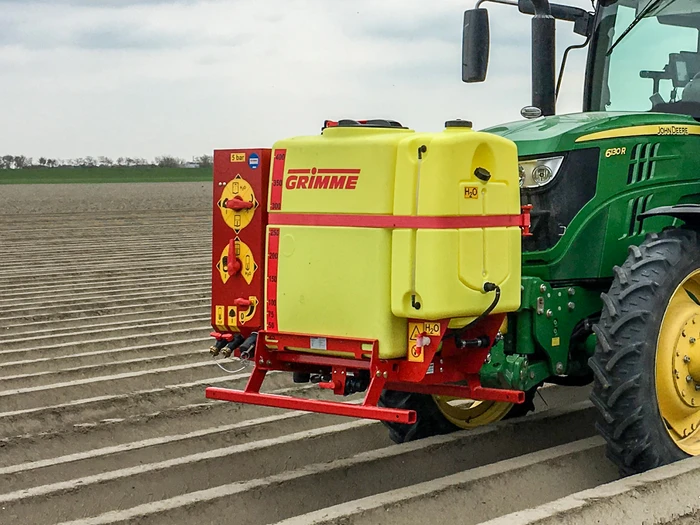

Combined plant protection

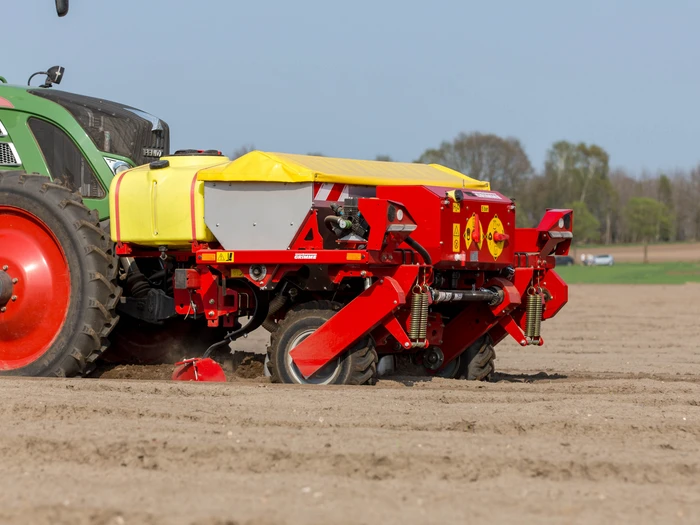

GRIMME tank system TS 410, authorized for liquid chemicals to be applied onto the seed potatoes and/or into the furrow.

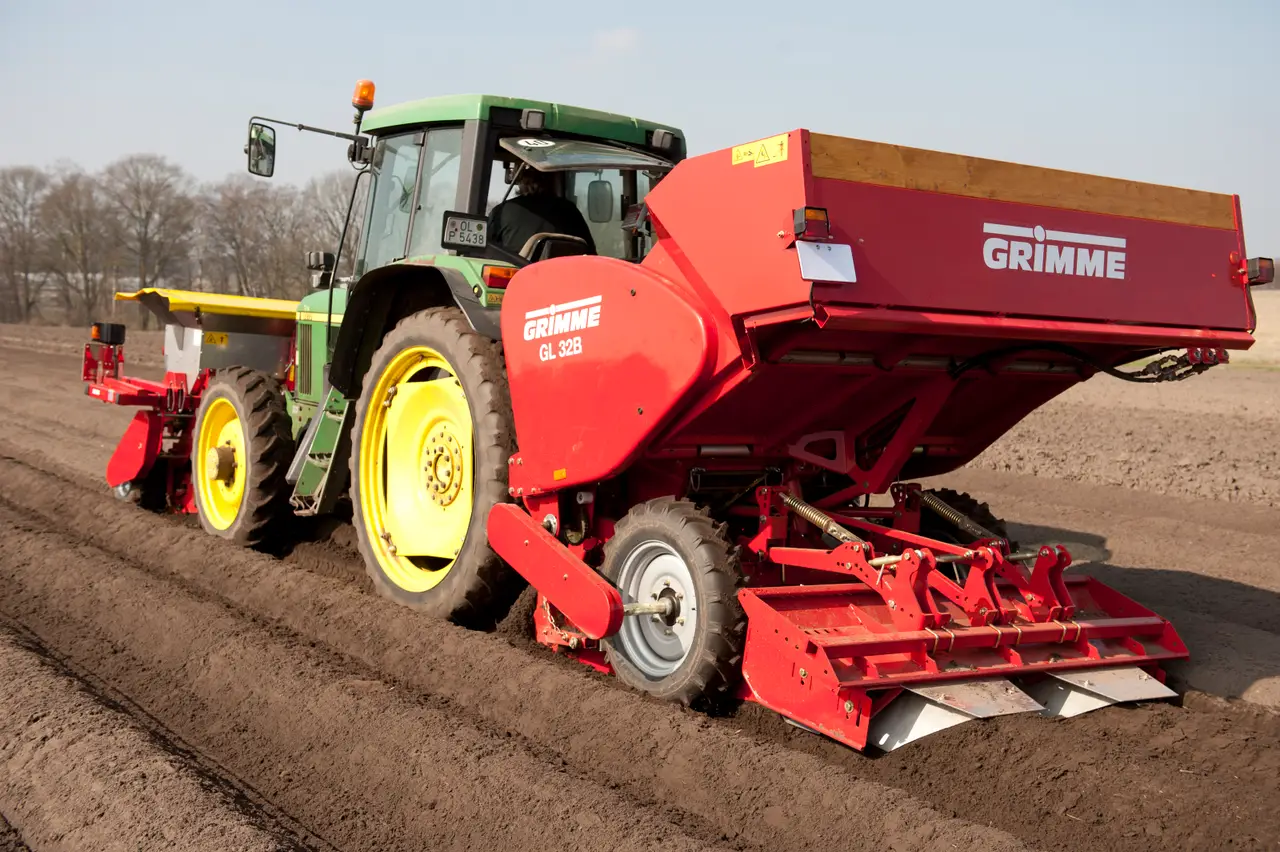

Combining work steps
The combination of a potato planter (rear mounted) with a extended fertilizer spreader (front mounted) enable to realize an under-root fertilisation as well as the application of liquid seed dressing and furrow treatment agent in a single pass with potato planting.

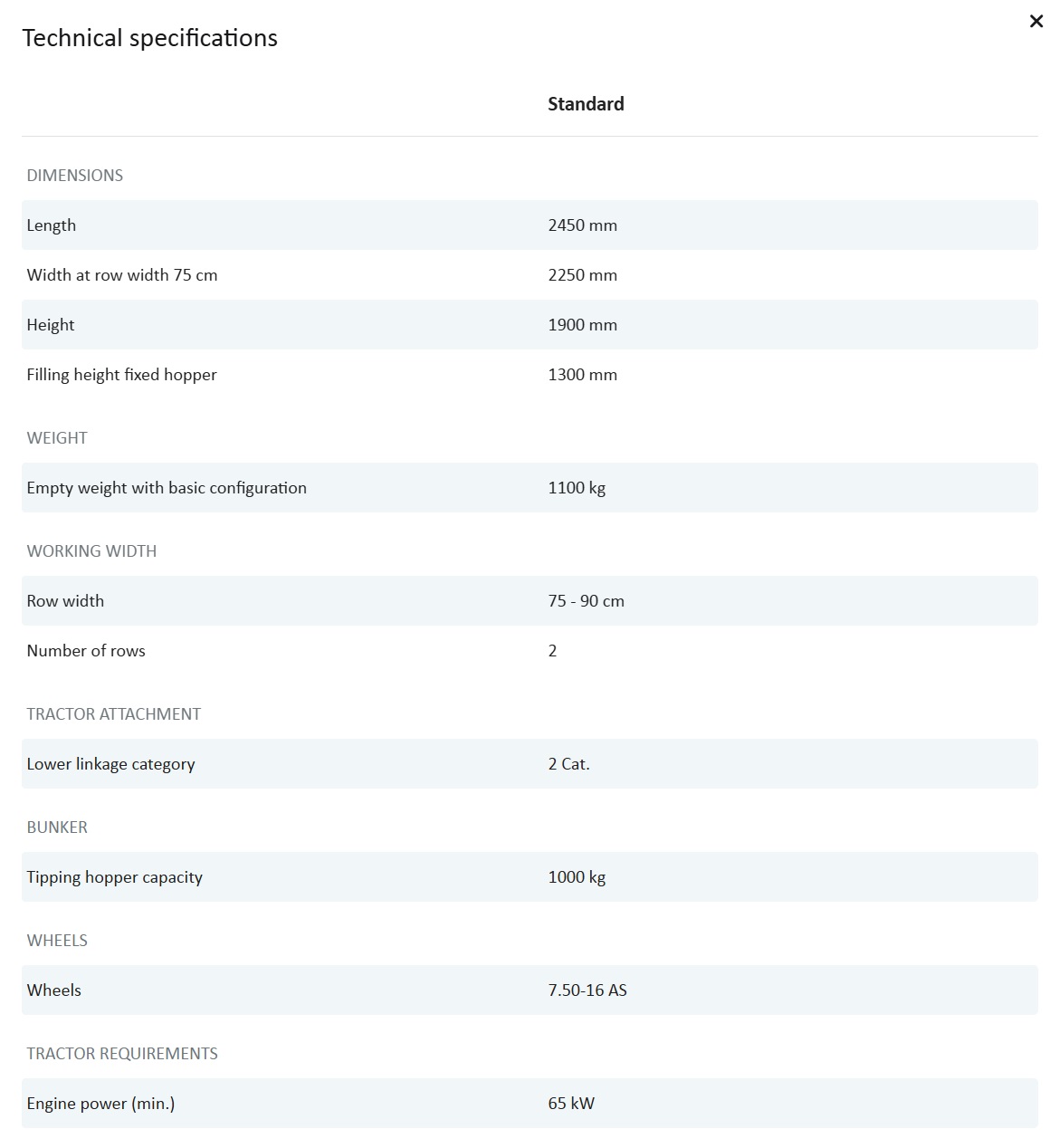

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
- Potato planter with 2 planting elements
- Stainless steel bottom in cup hopper.
- Planting belt with cups of choice
- Quick unlock of planting elements.
- Infinitely adjustable mechanical shaker.
- Fixed furrow opener
- Spring loaded covering unit, ball bearing mounted
- Bed divider
- Large deflector plates at the side
- Shaping board
- Chassis with 2 running wheels
- Wheels 7.50-16 AS

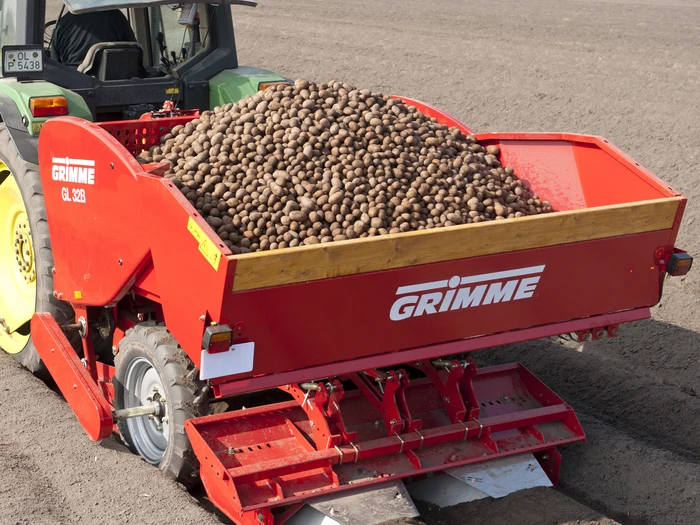

- Tipping hopper capacity 1000 kg
