Row Dependent Soil Cultivation GF 400
Soil Cultivation

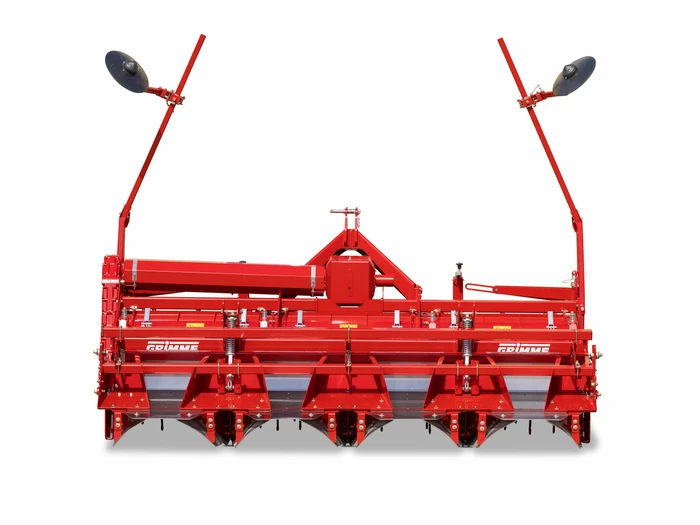

Row Dependent soil cultivation GF 400

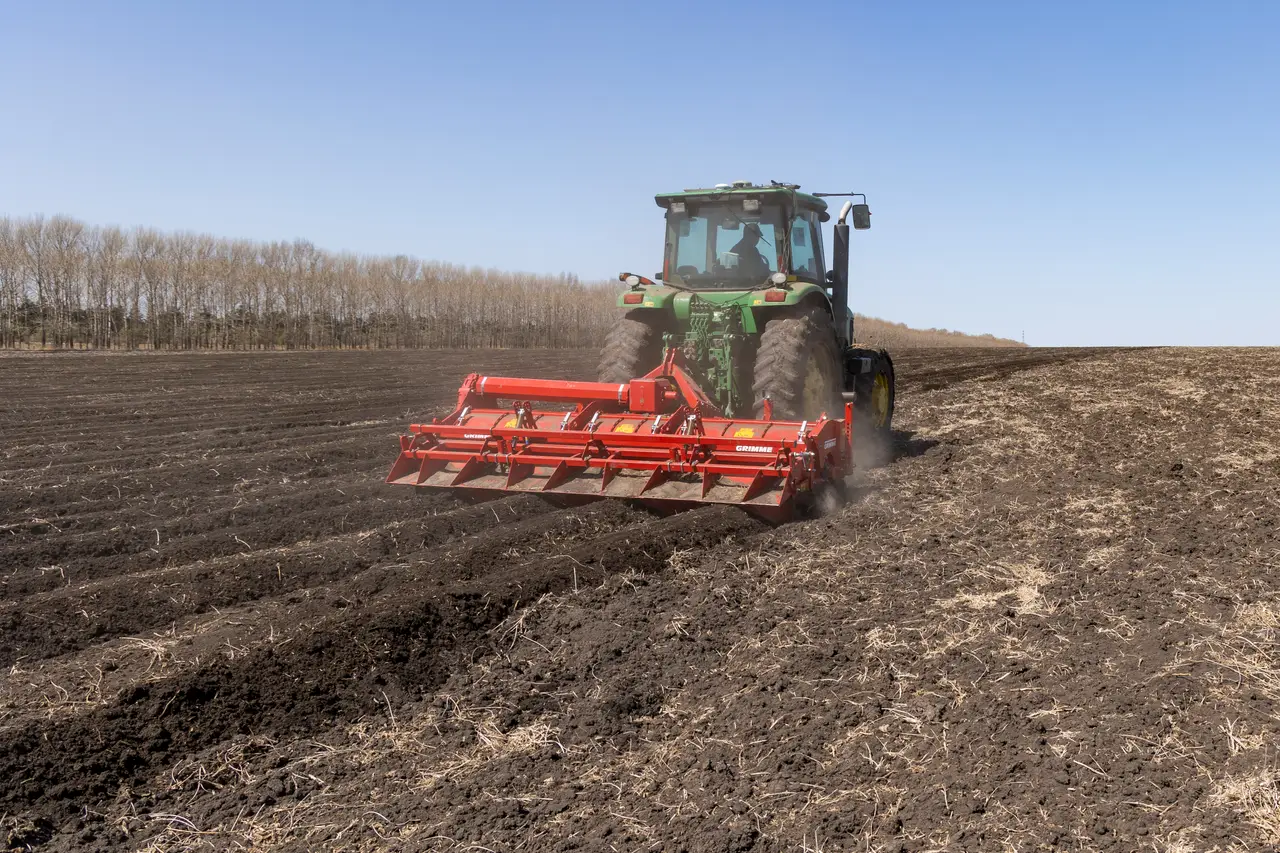

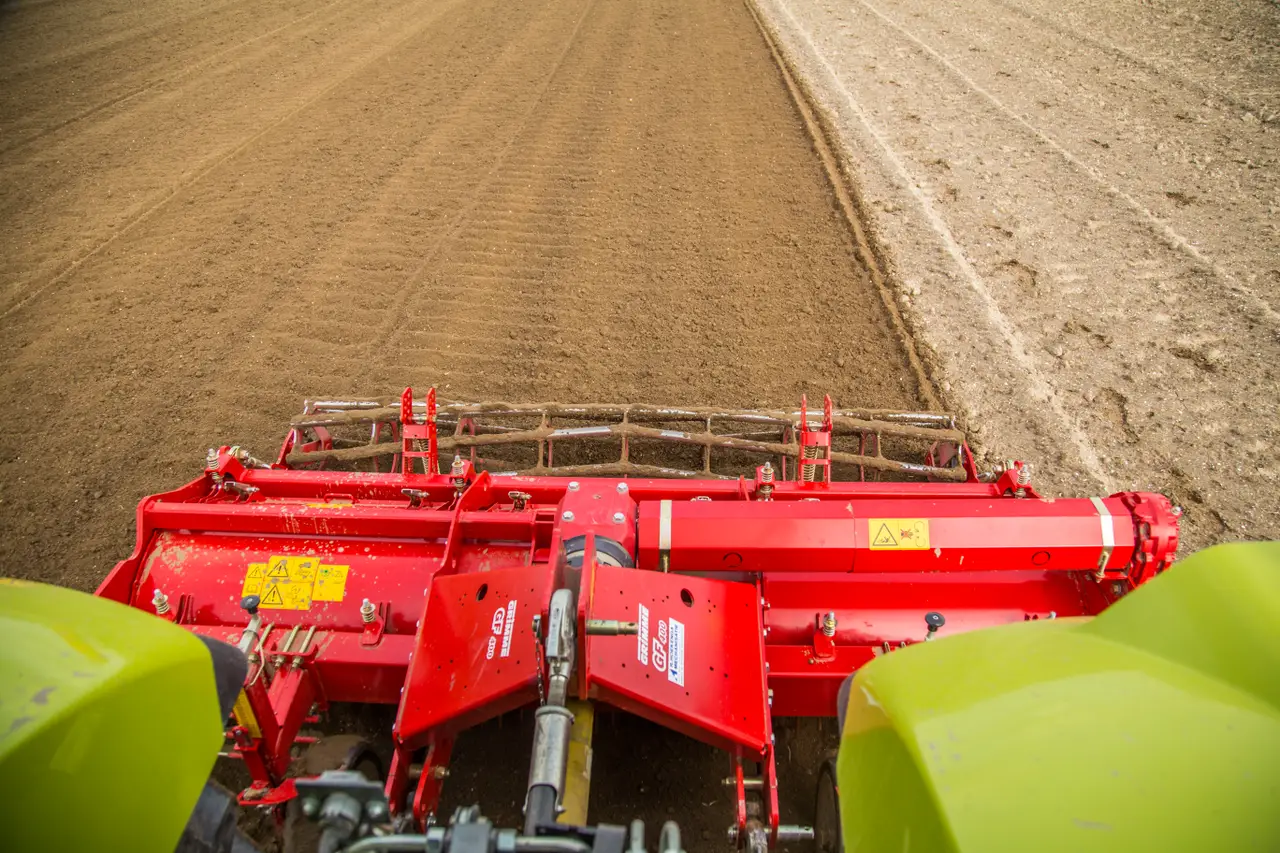

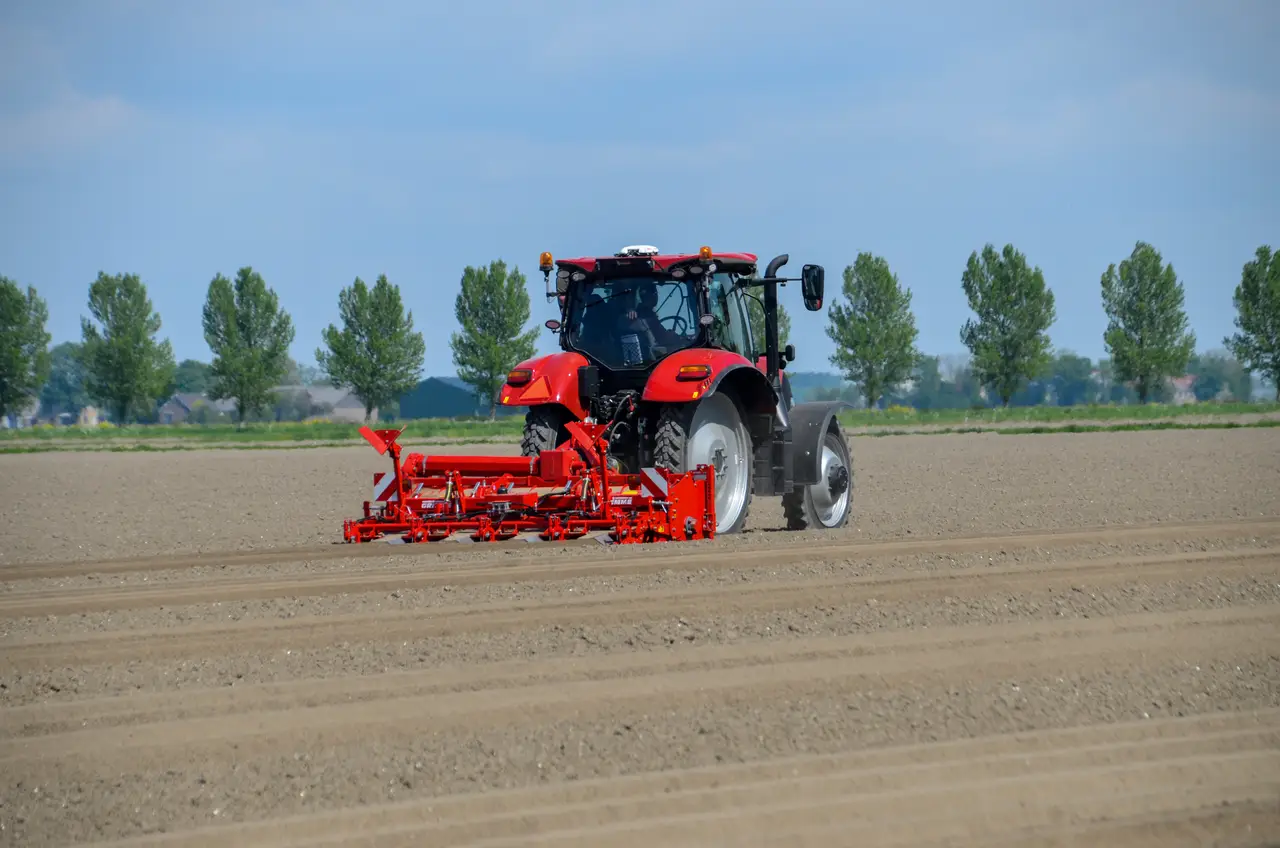

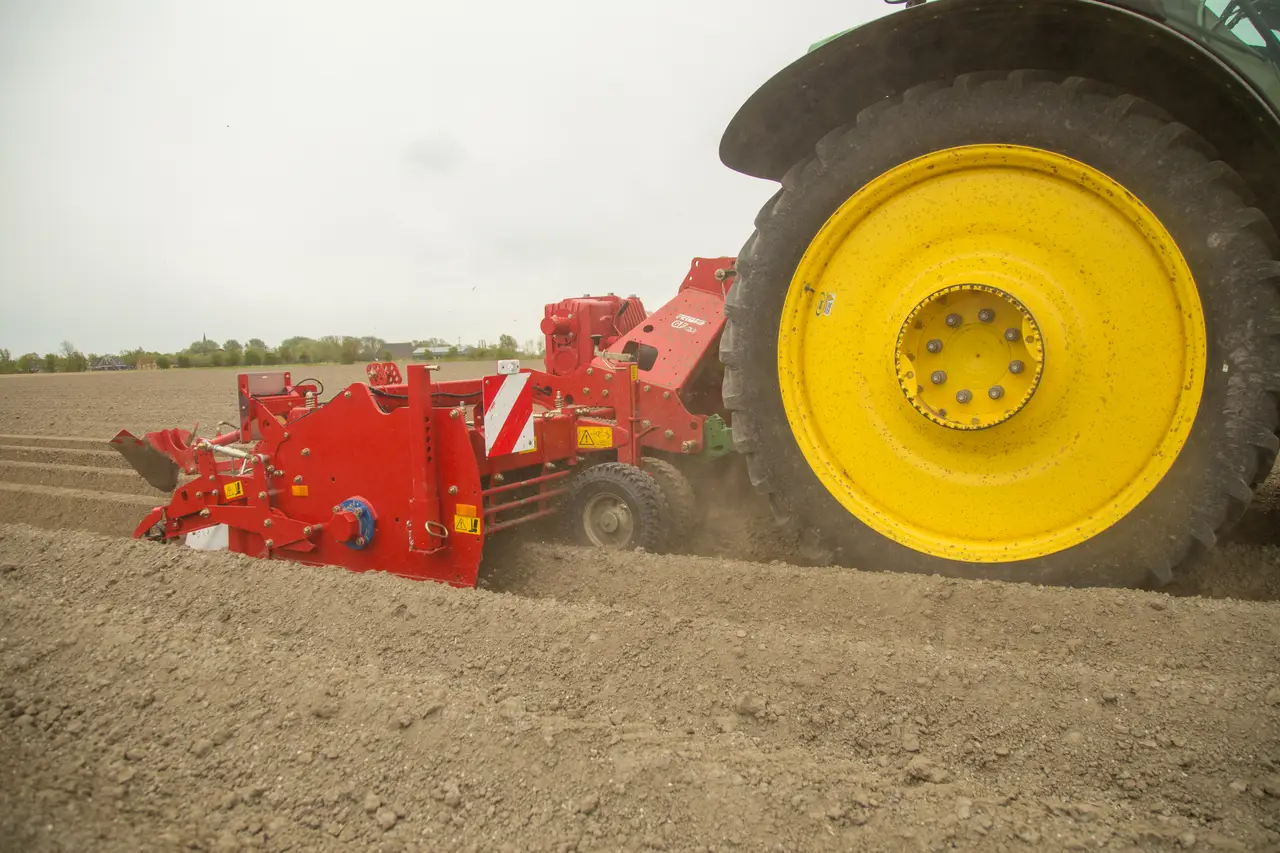

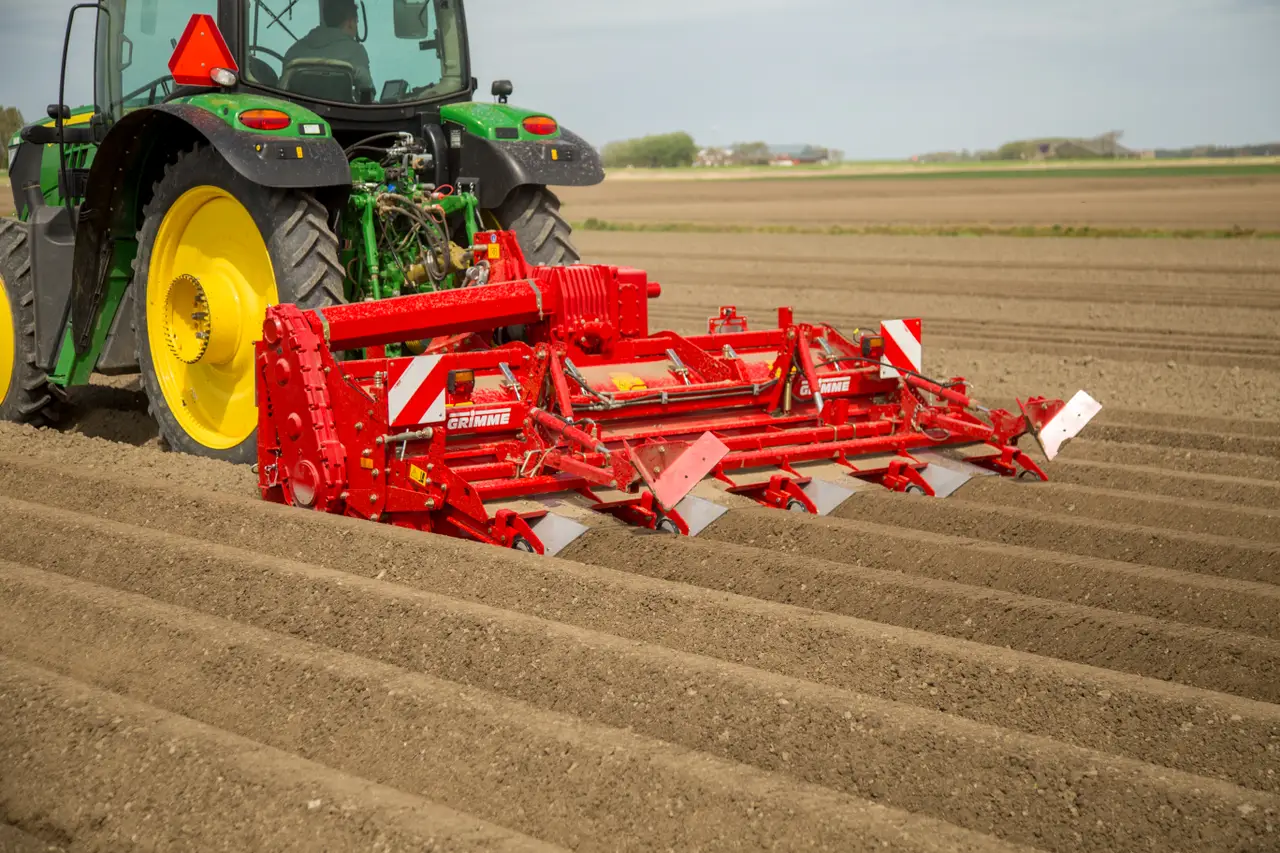

The rotary tiller type GF 400 is suitable as a full width tiller for an optimum seedbed preparation for the cultivation of various vegetables and potatoes.
An ideal prepared seedbed is the prerequisite for optimum development of the seed resp. planting tubers. Through intensive soil cultivation, root crop ground preparation is perfectly achieved so that undisturbed growth of the crop can be guaranteed.

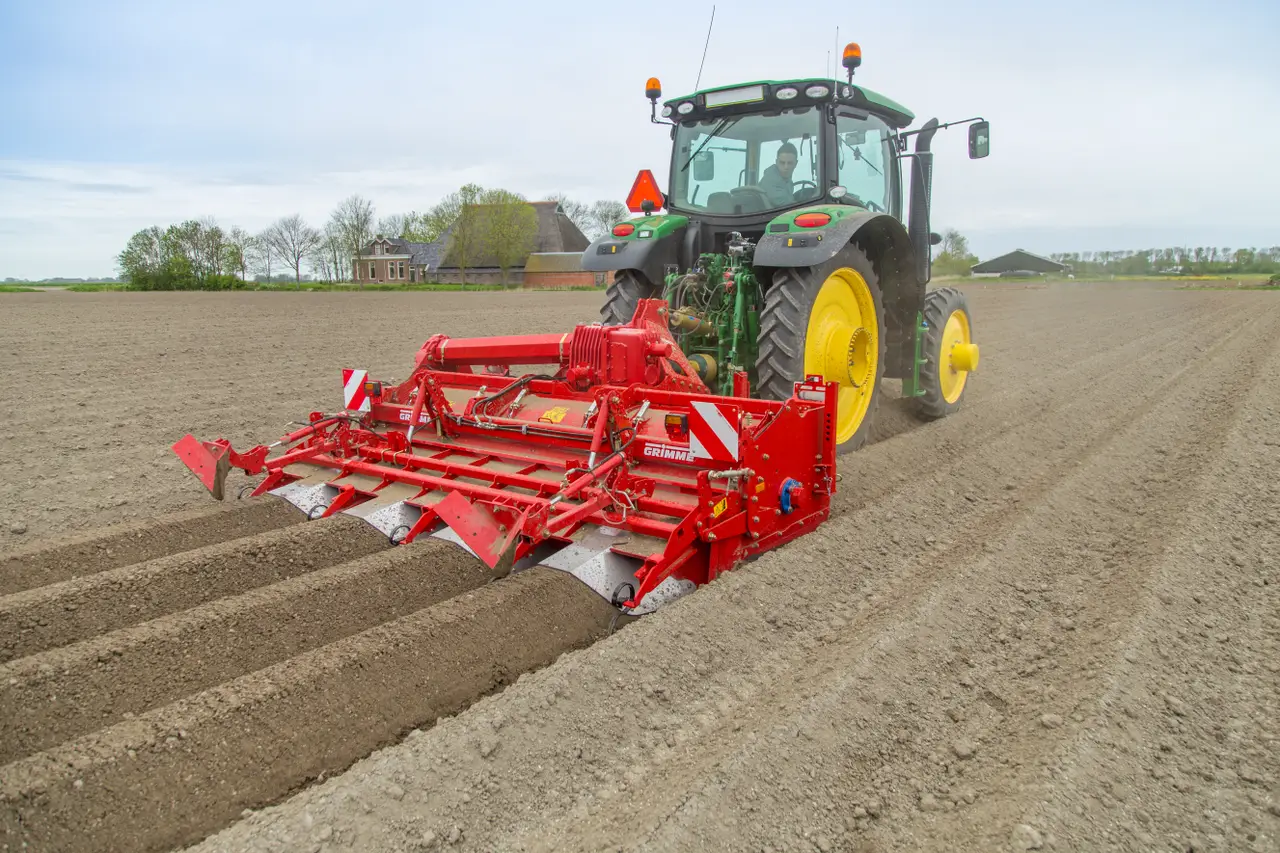

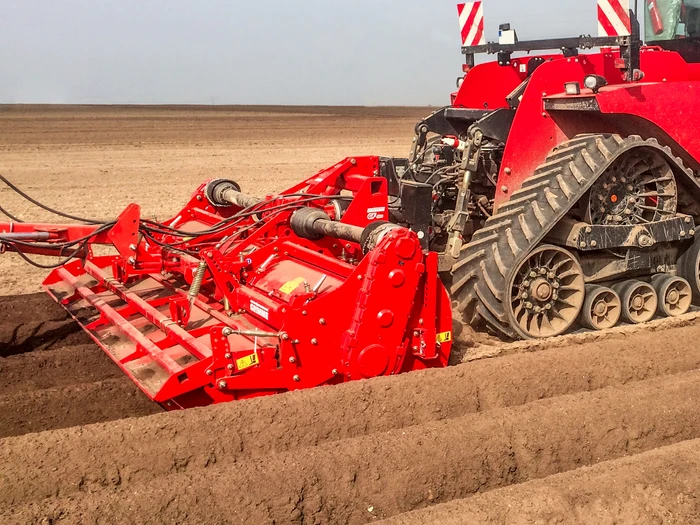

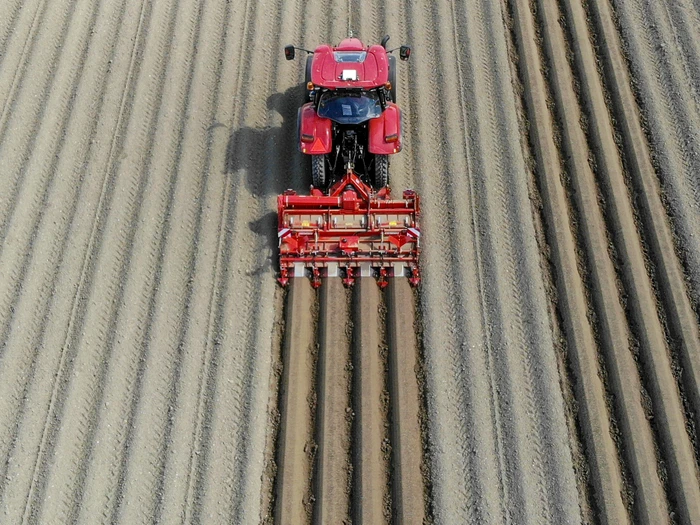

For conventional hilling (in a second working step) the rotary tiller GF 400 can be modified to be used as a rotary hiller. The machine can be converted from independent rows to a full width tiller with a few simple steps.

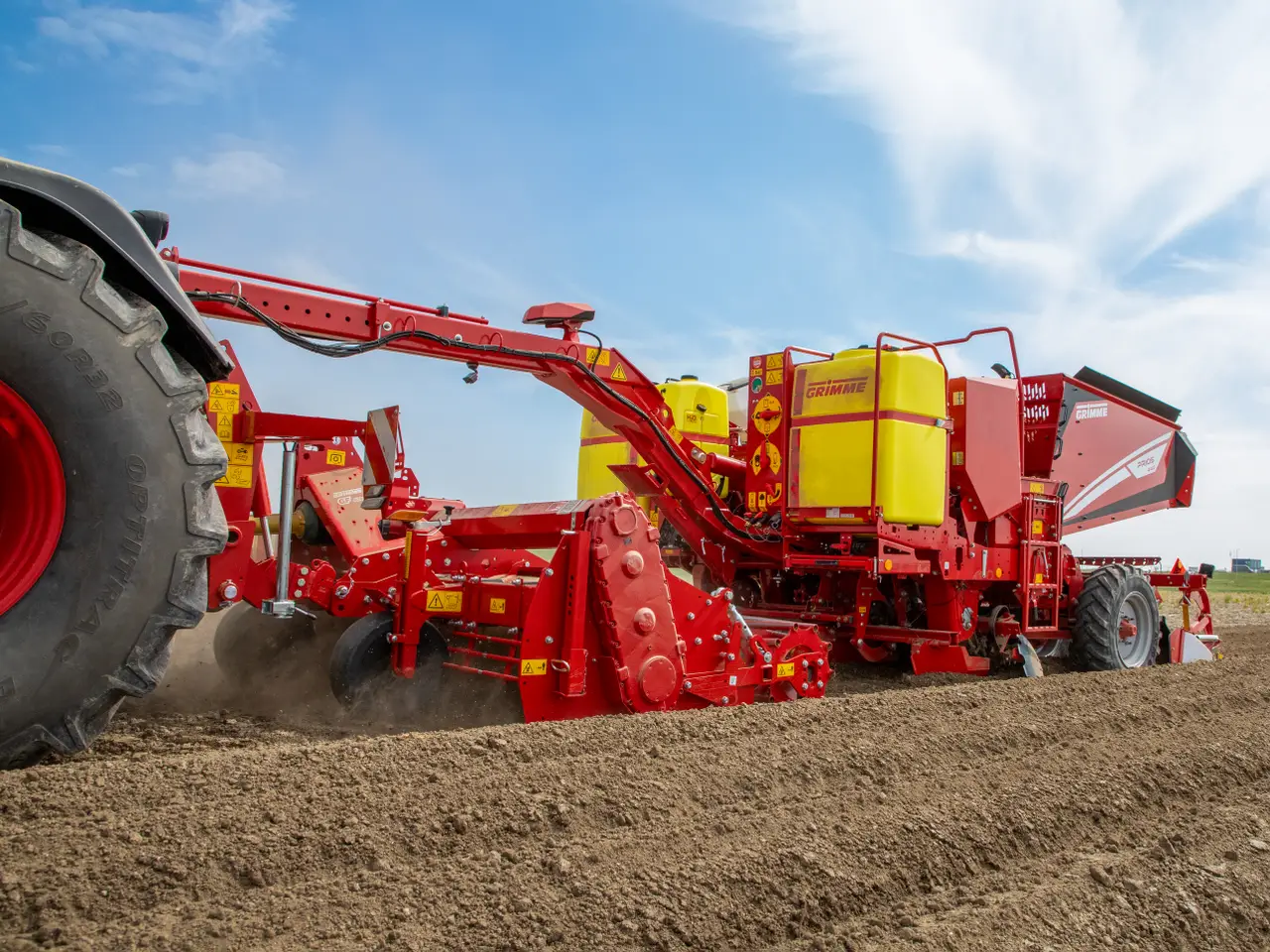

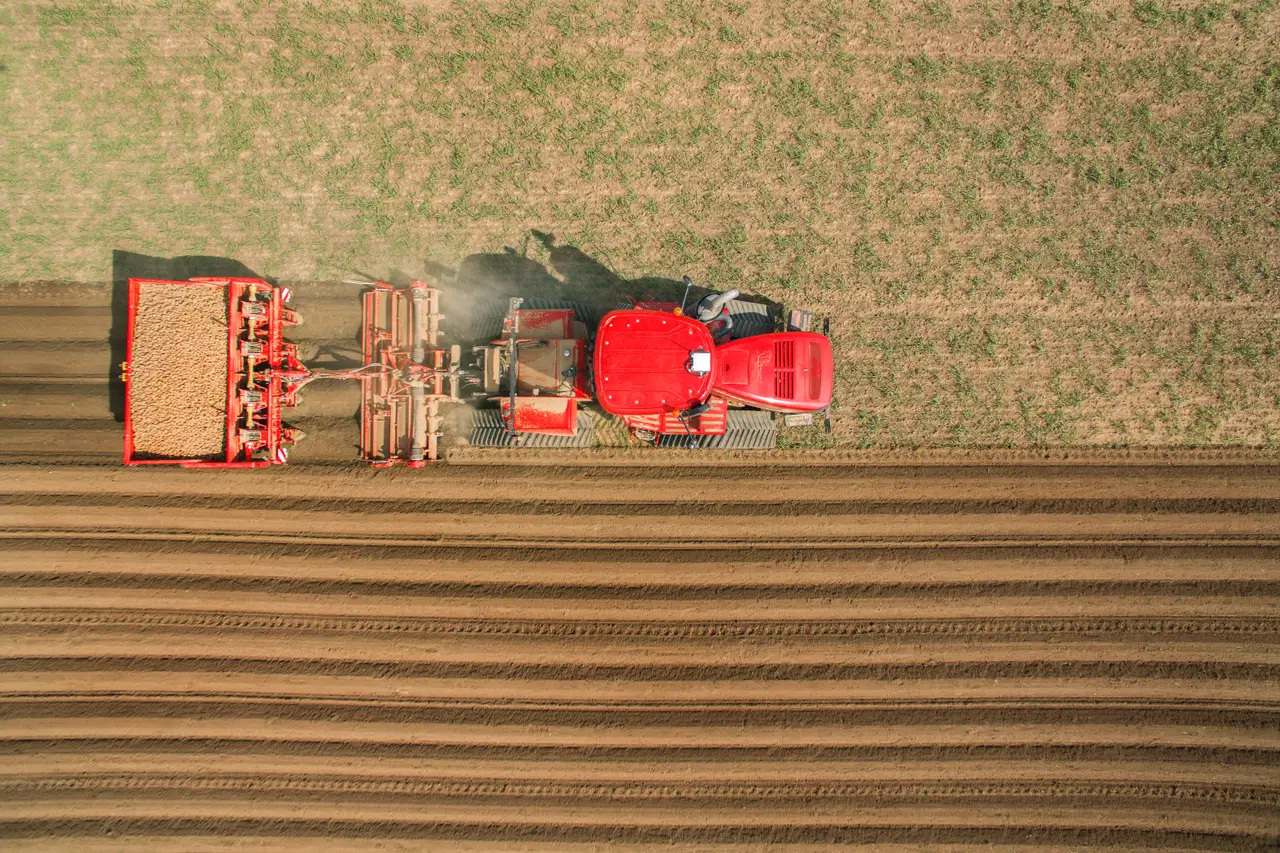

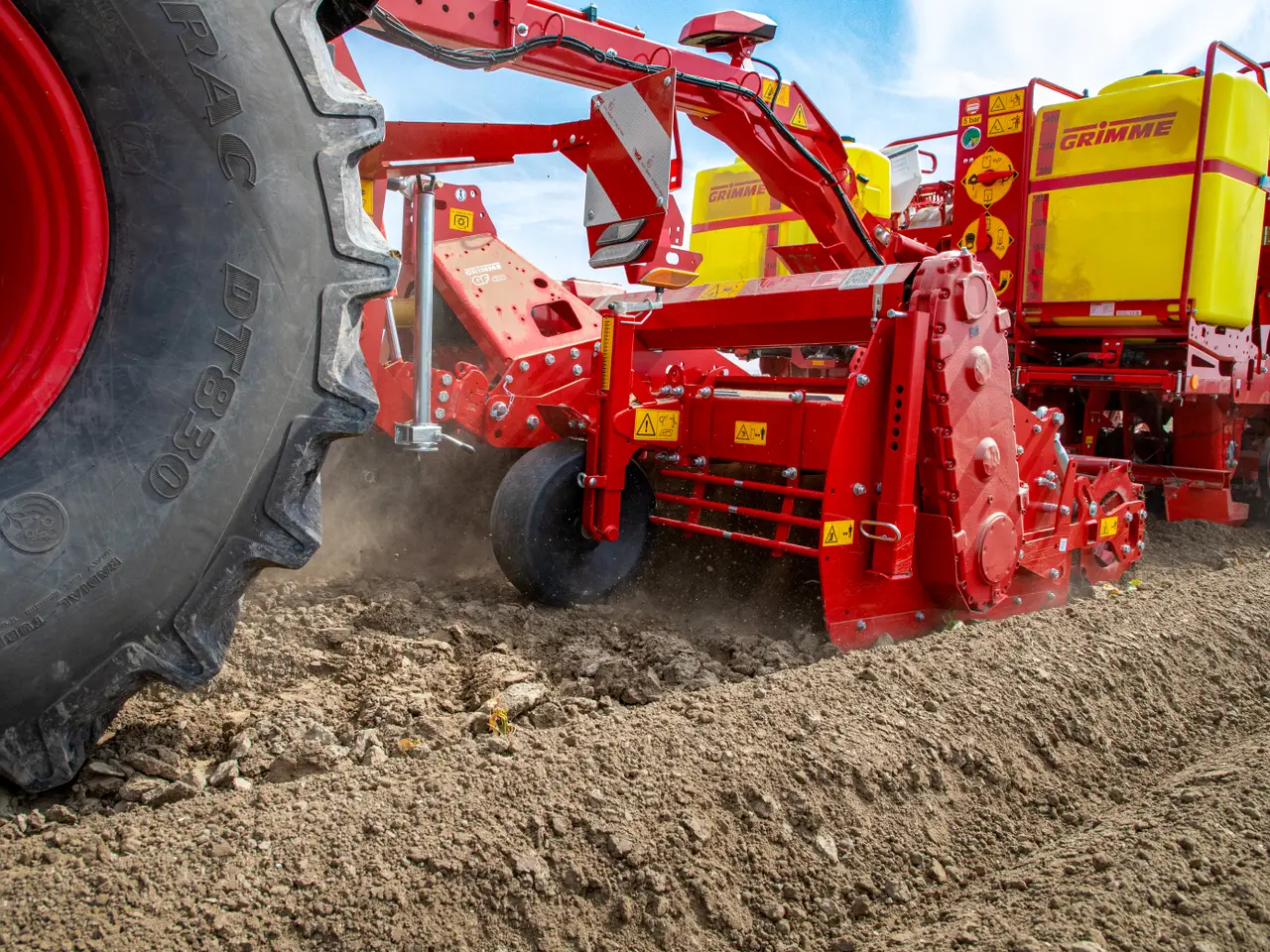

For the best protection against soil erosion, the tiller can be equipped with the dyking system, called TerraProtect. The rotary tiller GF 400 can also be used in combination with a potato planter, thus enabling soil cultivation and planting in a single pass.

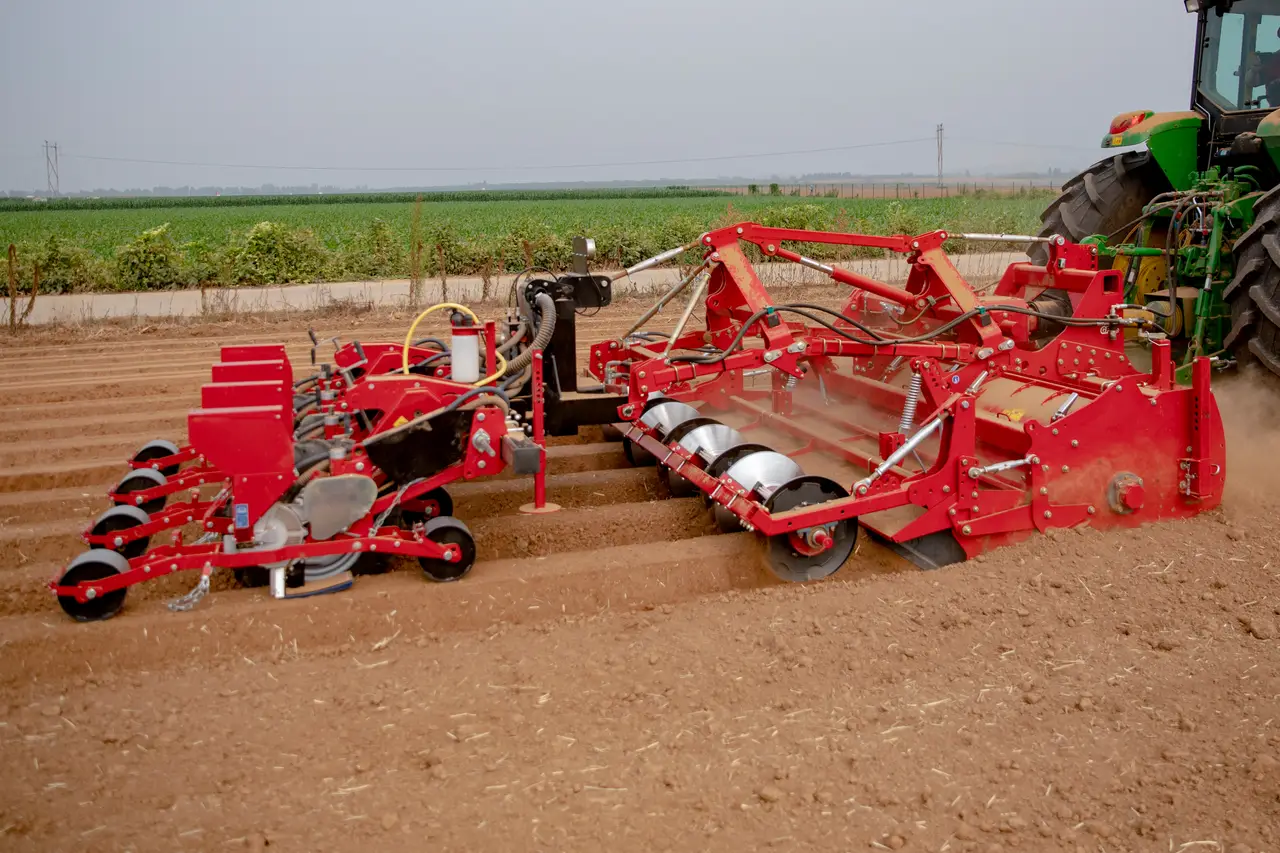

For soil cultivation and seeding of fine seeds in a single pass, the rotary tiller GF 400 can be equipped with hydraulically driven ridge pressure rollers and a lifting frame for seeders.
Product Highlights
Protection against erosion in all agricultural crops grown on/in ridges
TerraProtect creates small transverse ridges, so-called dykes, between the ridges. The dykes reduce the risk of erosion and at the same time promote water absorption.

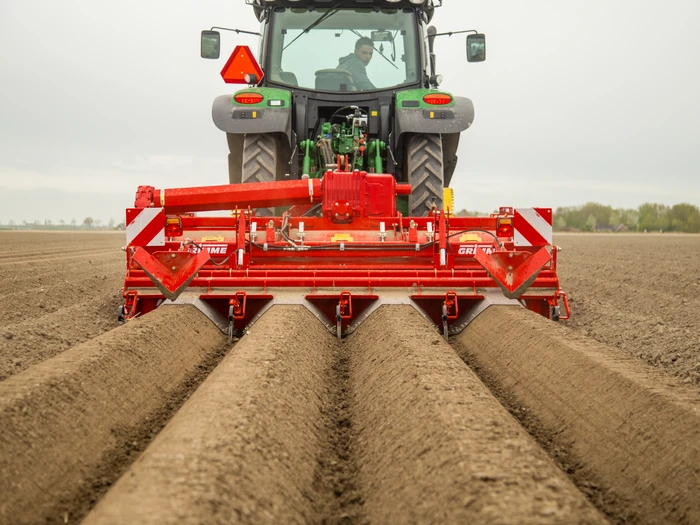

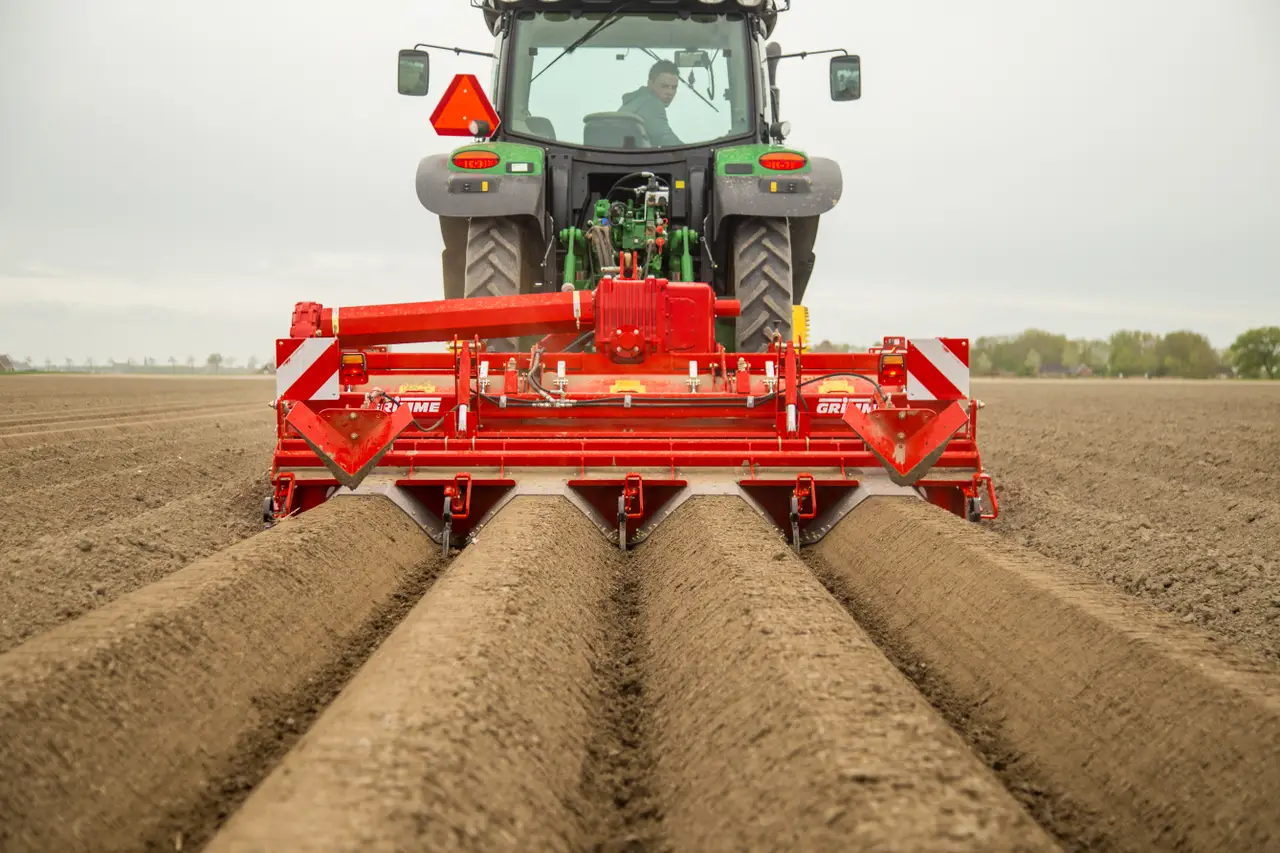

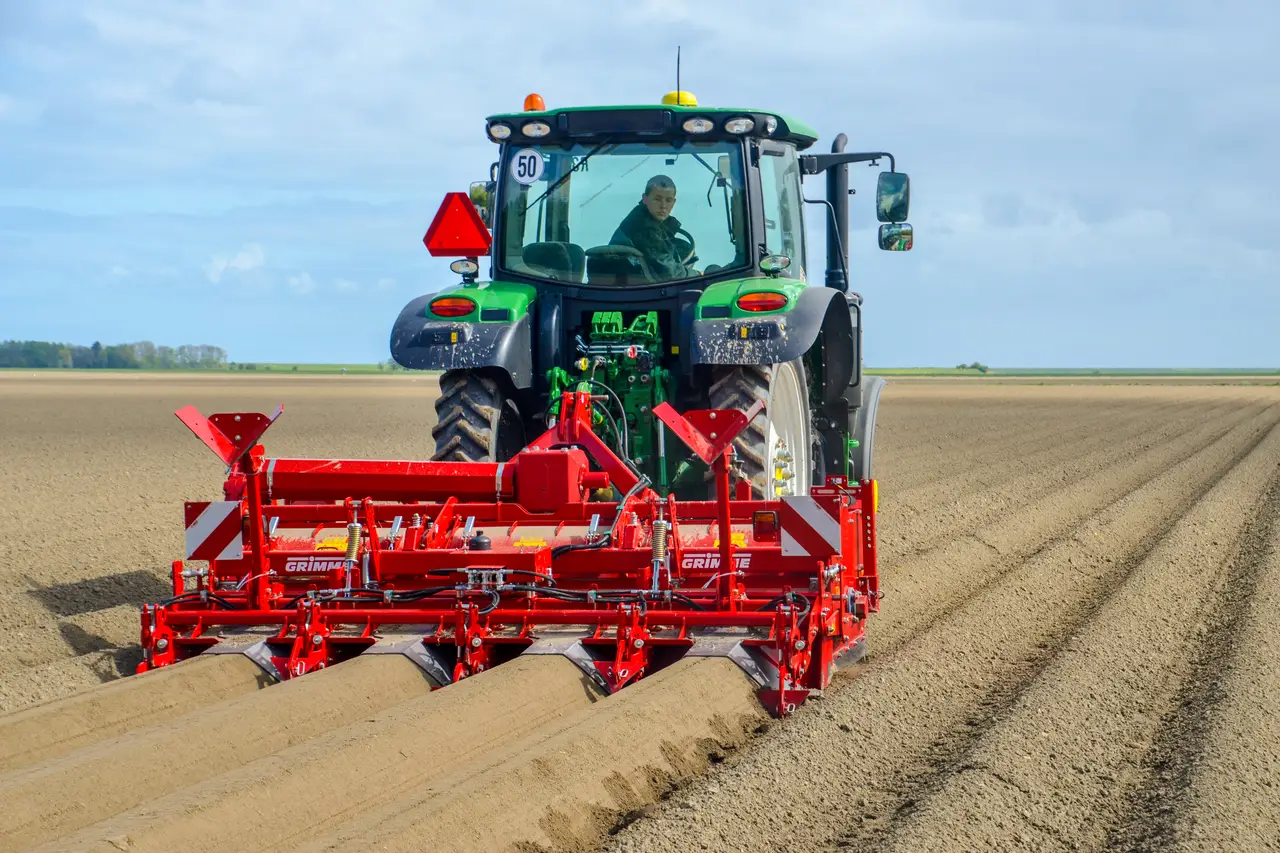

Large-volume ridges
The shaping board XL creates ridges with a large volume, so that there is enough space for a large tuber-nest.
Perfect shaping of the ridge crown

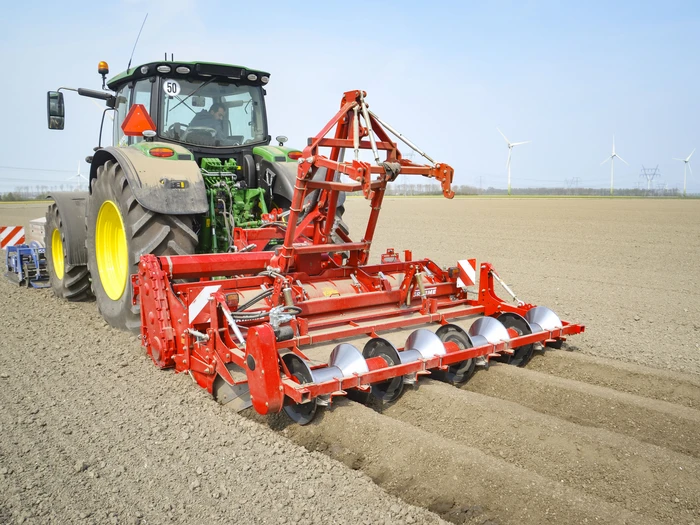

Especially for cultivation of chicory and carrots, the ridge crowns are smoothed by the hydraulically driven ridge pressure rollers. For the shaping board as well as for the ridge pressure rollers different versions for different row widths are available.

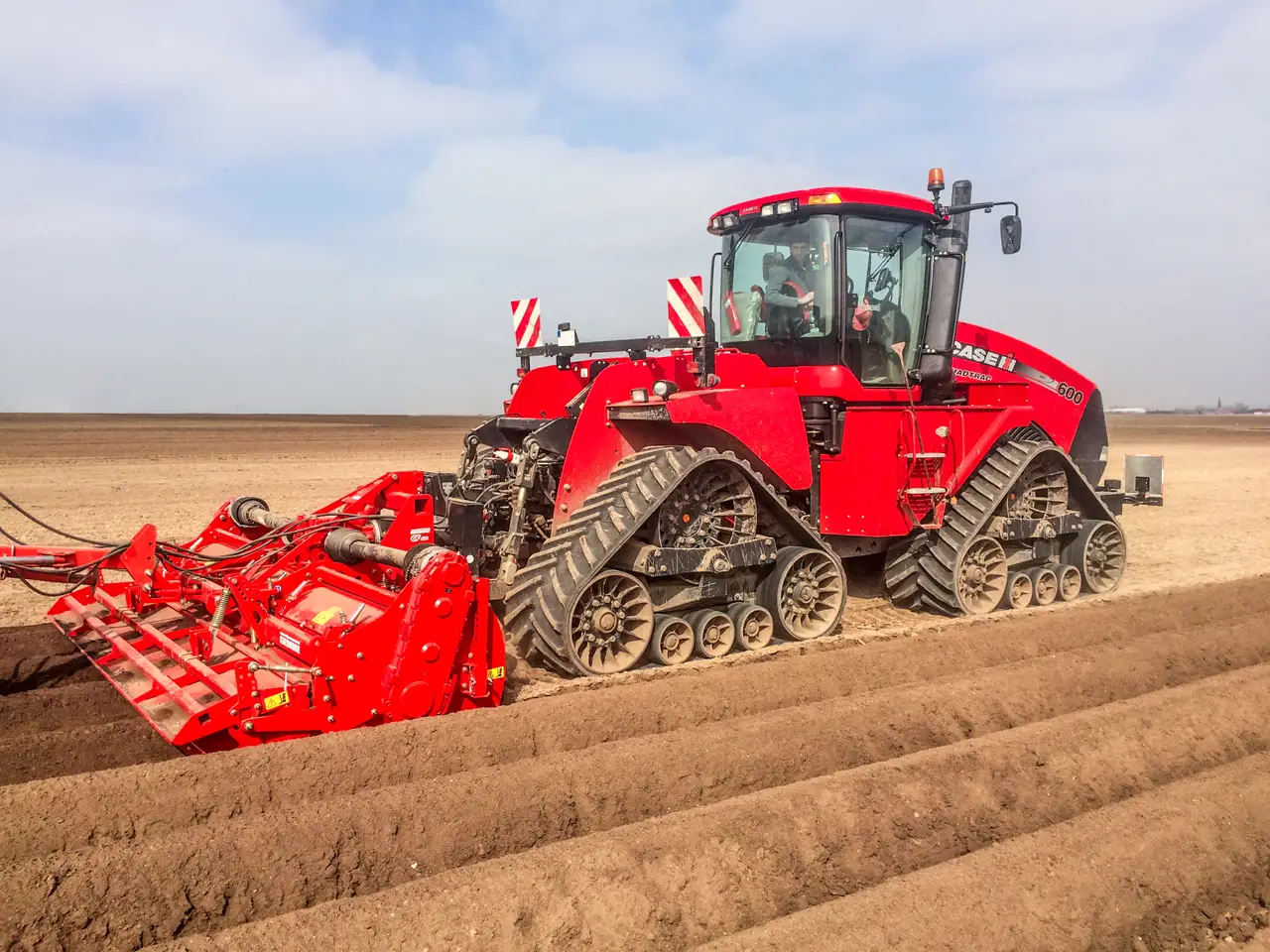

Up to 500 hp
Most powerful rotary tiller in the market, using a heavy duty gear box for tractors of up to 500 HP.

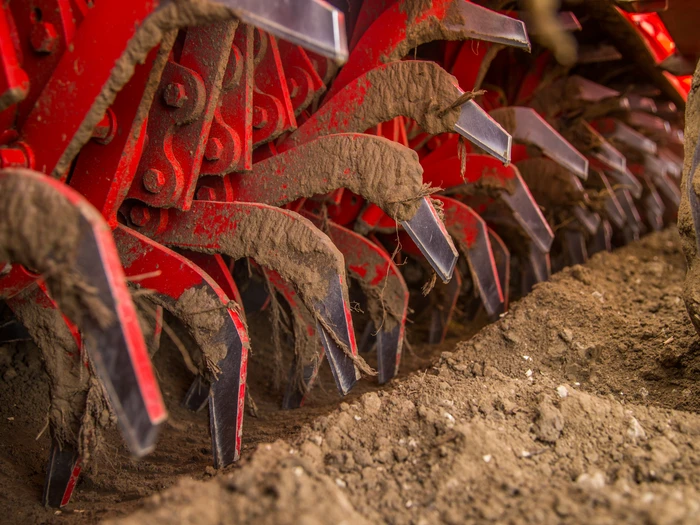

Highest number of cultivation tines
An increased rotor speed and a high number of tines (option) ensure an intensive tillage on heavy and sticky soils.

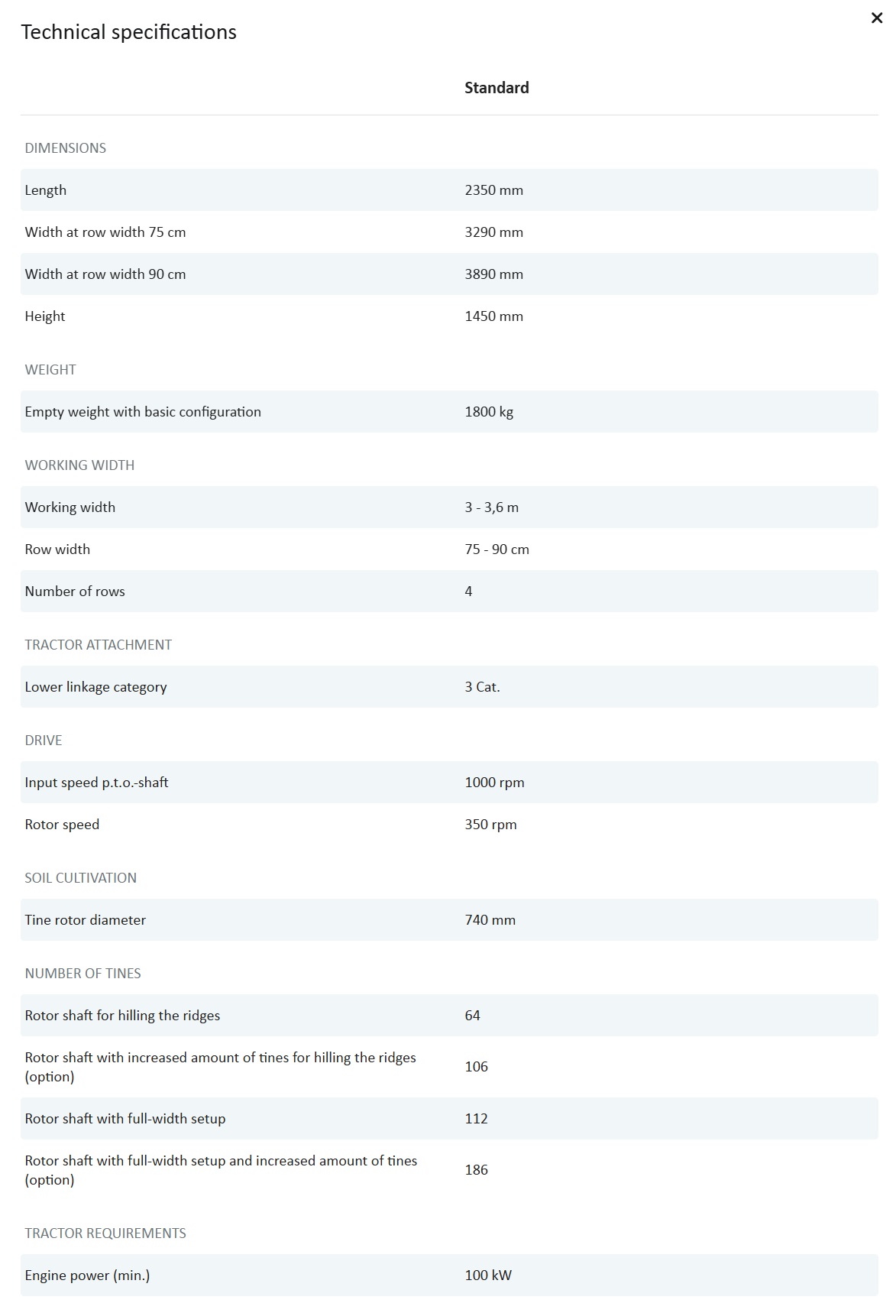

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
- Row width 75 cm
- Rotor shaft for ridge tilling
- 64 tines, 50 x 12 mm each, with hard-wearing tips
- “Walterscheid” drive shaft with friction clutch and 6 grooves
- Gearbox, 350 rpm, single drive for max. 165 HP
- Side gearbox with spur gears in it´s own housing
- Three-point linkage Cat. 3
- 2 infinitely height adjustable support wheels for depth control
- Shaping board for bulbous ridges
- Shaping board pressure adjustment via springs
- Shaping board levelling adjustable via spindle
