The rotary tiller type GF 600 is suitable as a full width tiller for an optimum seedbed preparation for the cultivation of various vegetables and potatoes.
An ideal prepared seedbed is the prerequisite for optimum development of the seed resp. planting tubers. Through intensive soil cultivation, root crop ground preparation is perfectly achieved so that undisturbed growth of the crop can be guaranteed.
For conventional hilling (in a second working step) the rotary tiller GF 600 can be modified to be used as a rotary hiller. The machine can be converted from independent rows to a full width tiller with a few simple steps.
Especially for carrot cultivation, the GF 600 can be equipped with hydraulically driven ridge pressure rollers to smoothen the surface of the ridge tops (option). The drive is designed for a tractor output up to 500 HP.
A hydraulically operated foldable frame is available to keep the machine within the allowed transport width (option)
Product Highlights
Across the full width

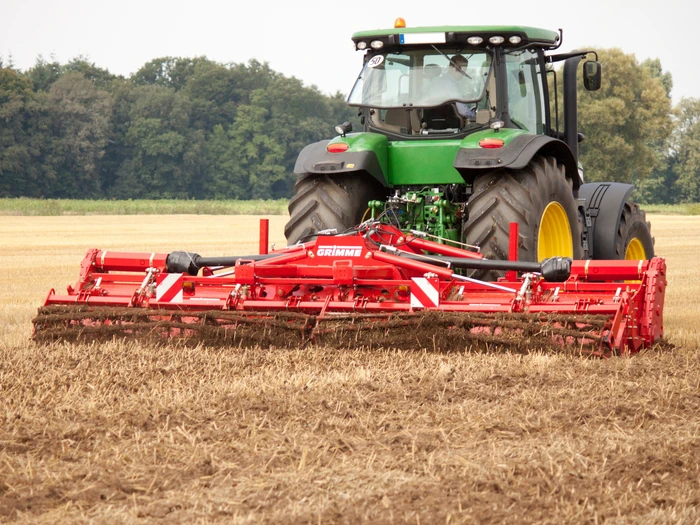

Soil cultivation on the full working width, for shredding clods and crop residues as well as for superficial tillage (e.g. stubble fields).
Even deep guidance

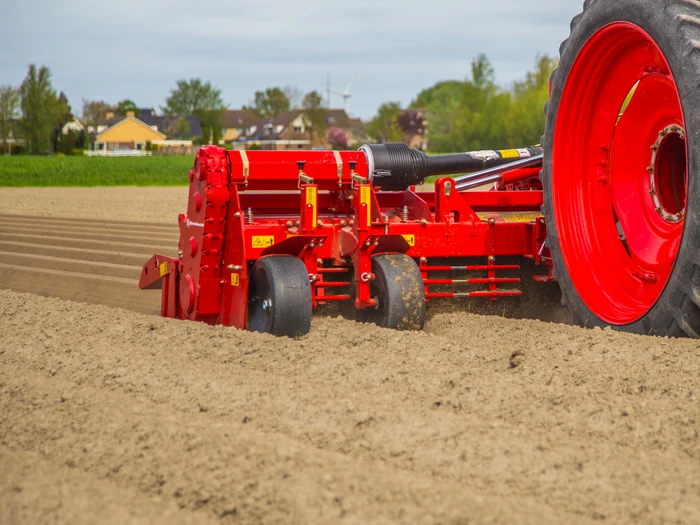

Support wheels ensure an even working depth.
Fast movement between fields

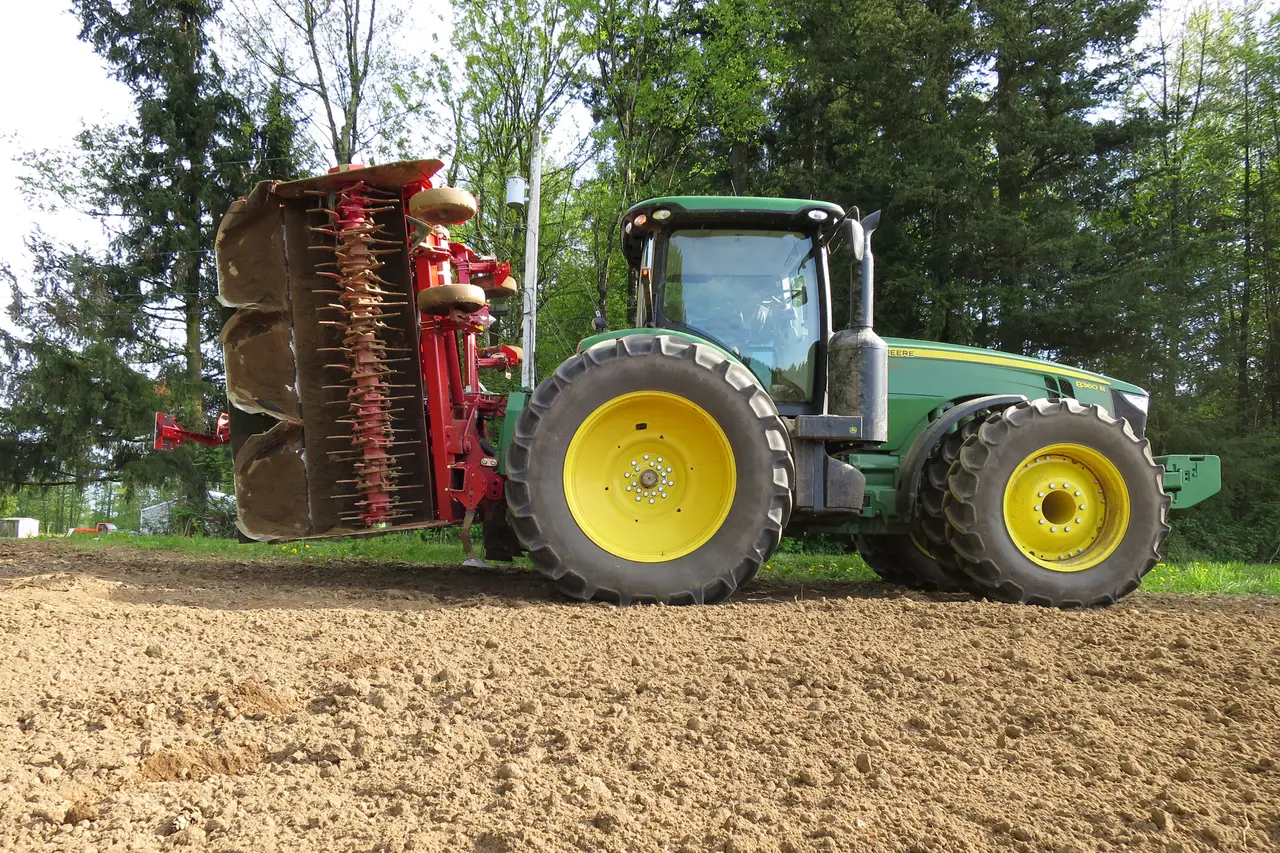

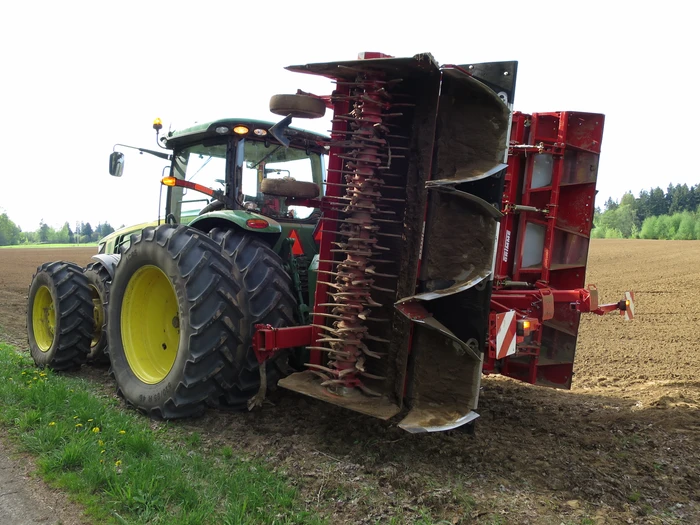

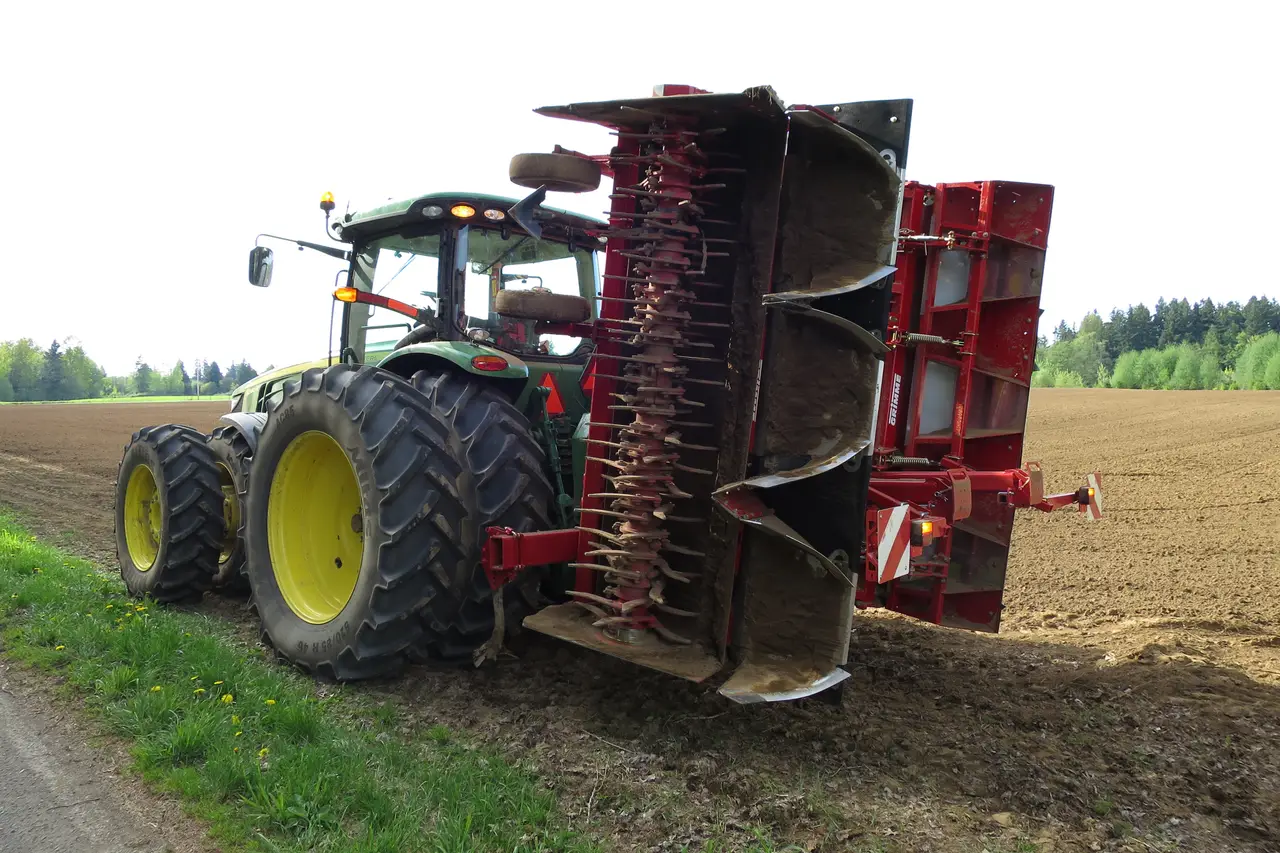

Safe road transport and quick change from field to field due to a fast hydraulic frame folding mechanism.
Up to 500 hp
Most powerful rotary tiller in the market, using a heavy duty gear box for tractors of up to 500 HP.

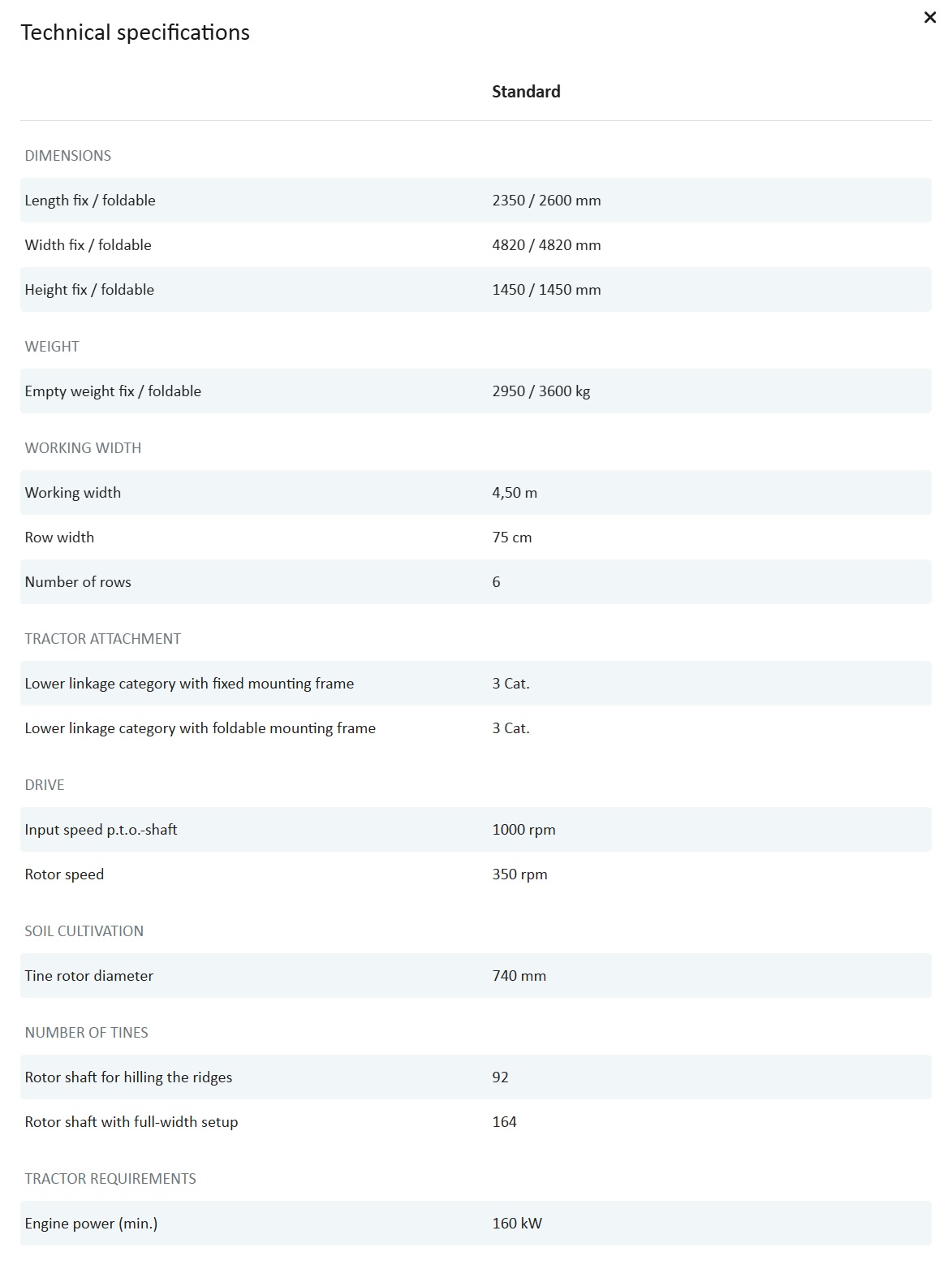

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
Row width 75 cm
Rotor shaft for ridge tilling
92 tines, 50 x 12 mm each, with hard-wearing tips
Spring loaded housing for less soil sticking
“Walterscheid” drive shaft P700 with cam shut down coupling, 20 grooves
Gearbox, 350 rpm, twin drive for max. 325 HP
Side gearbox with spur gears in it´s own housing
Three-point linkage Cat. 3
4 infinitely height adjustable support wheels for depth control
Shaping board for bulbous ridges
Shaping board pressure adjustment via springs
Shaping board levelling adjustable via spindle

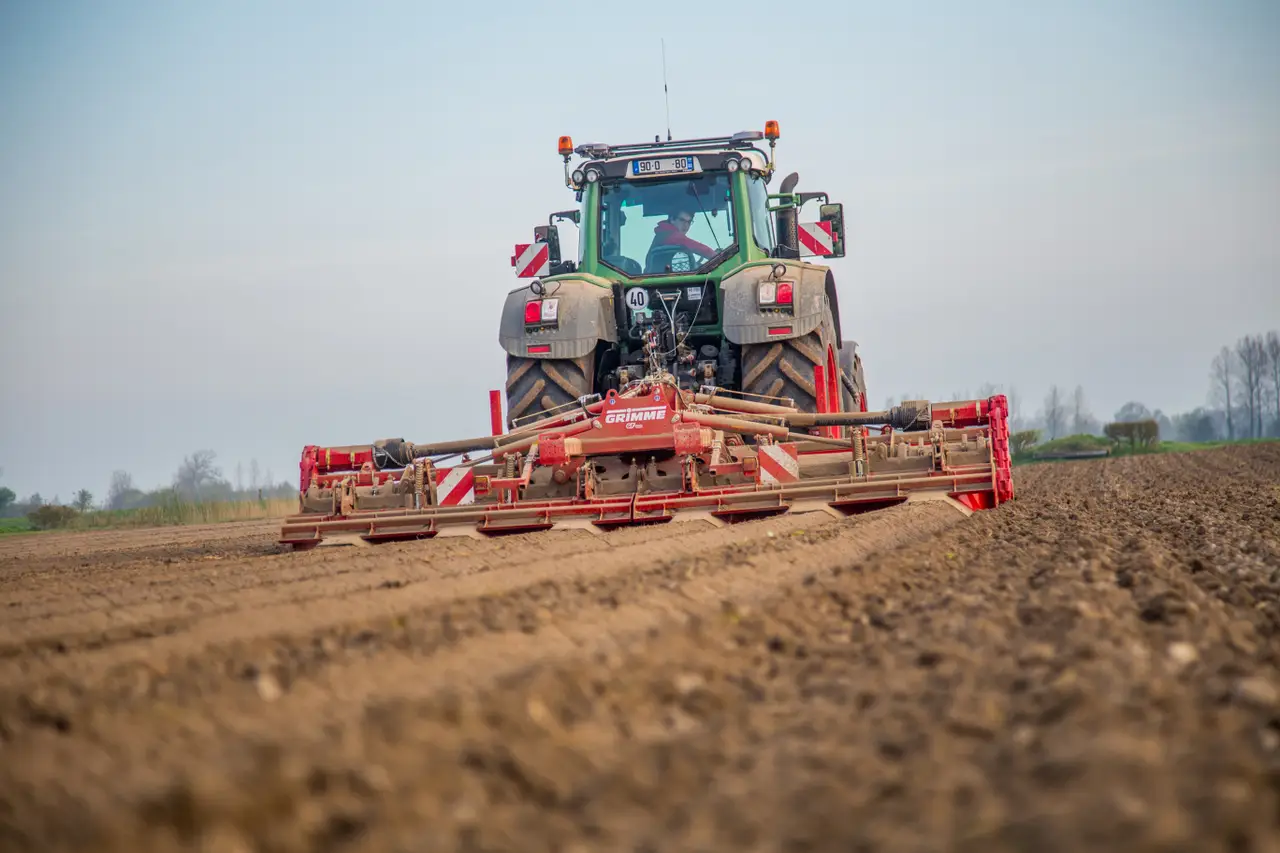

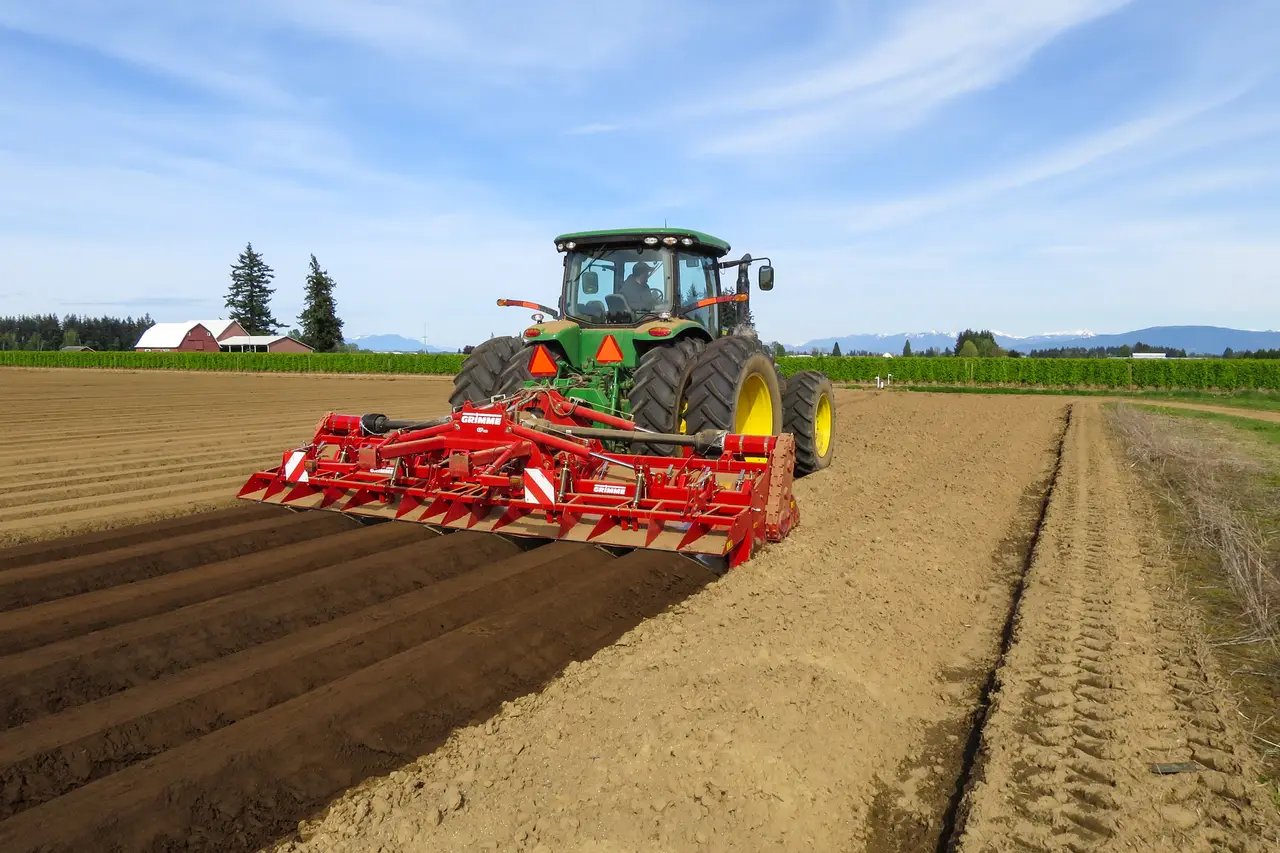

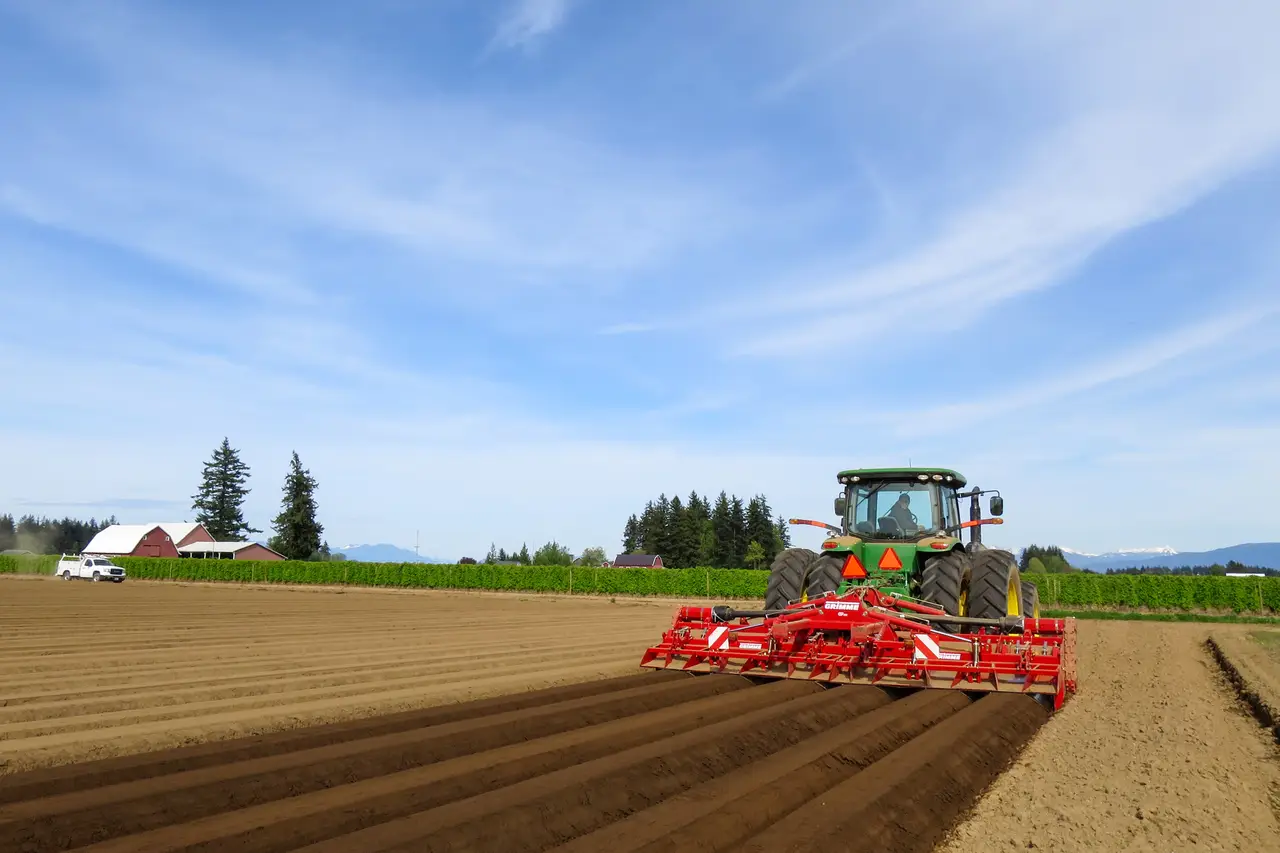

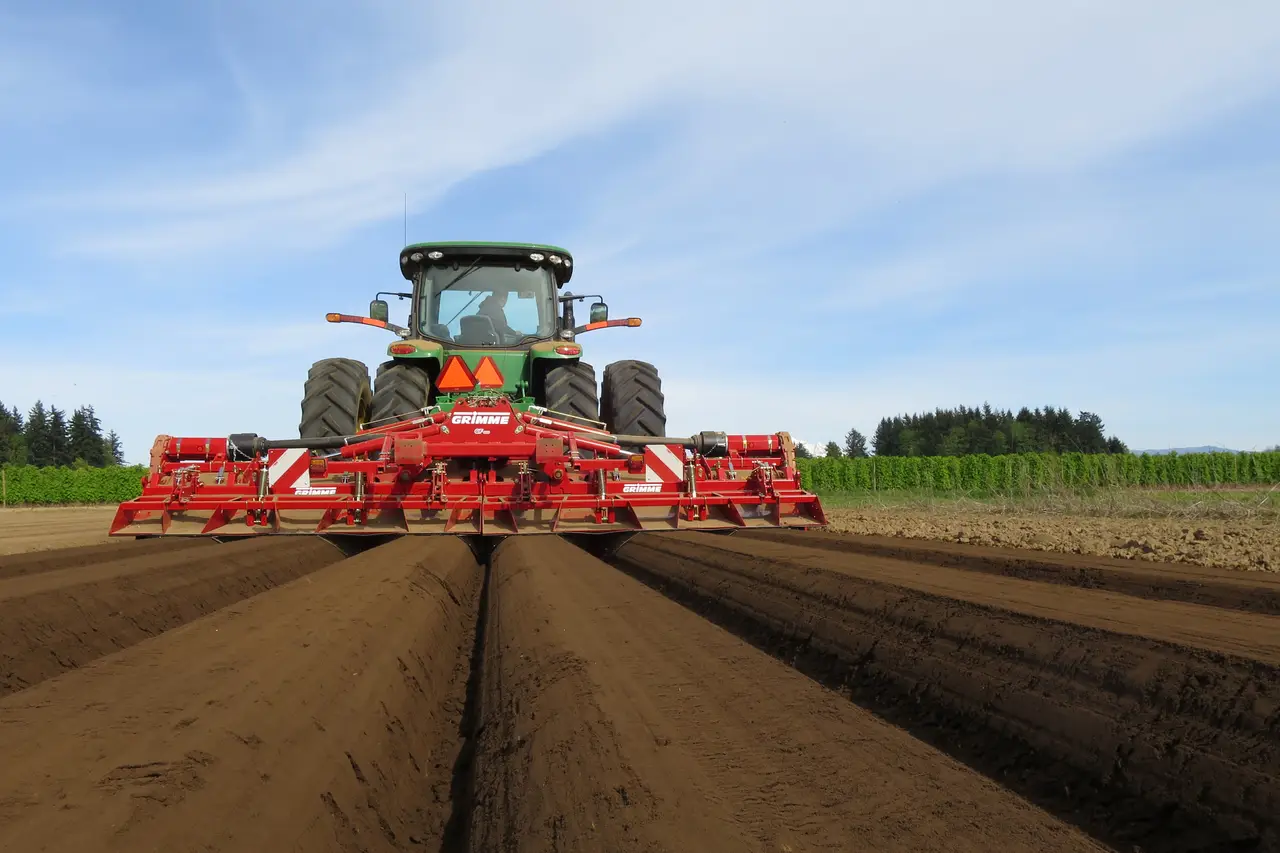

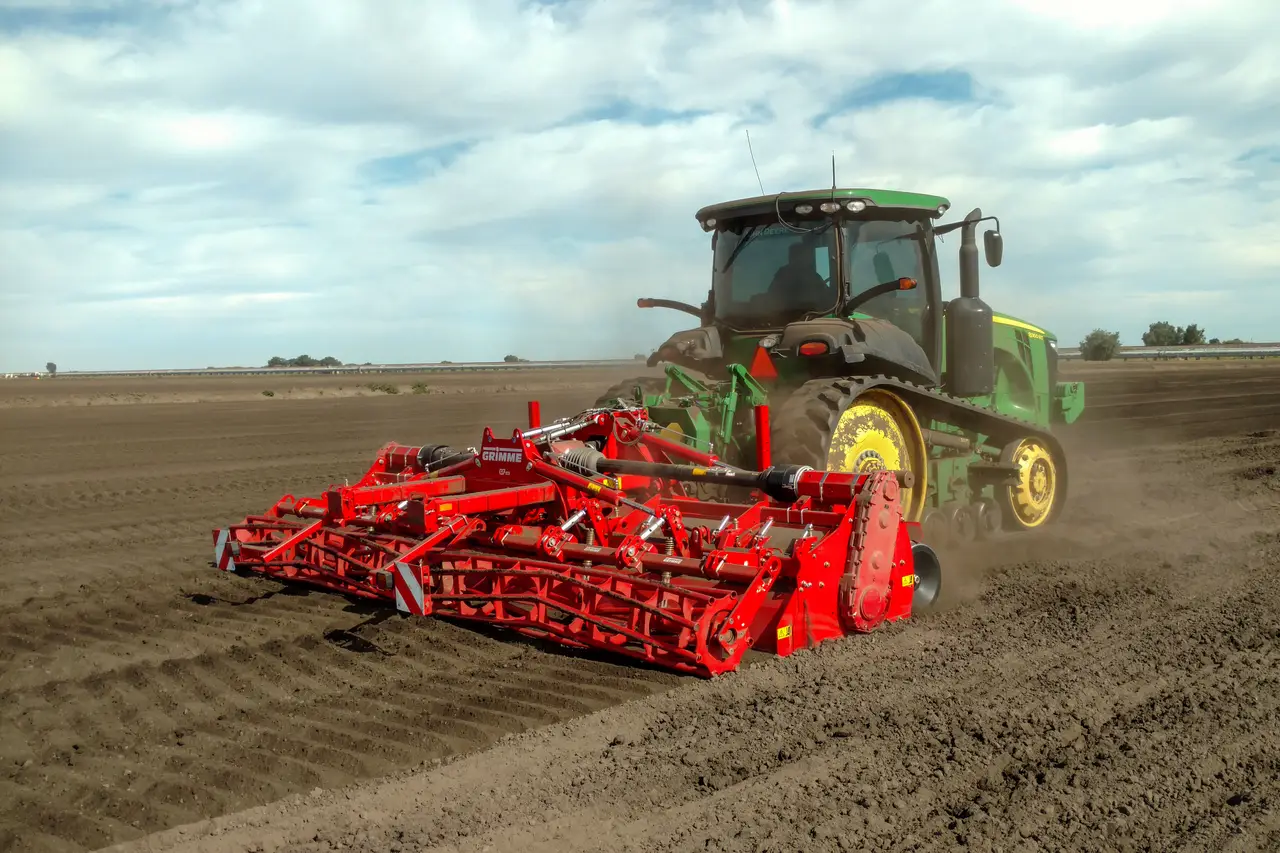

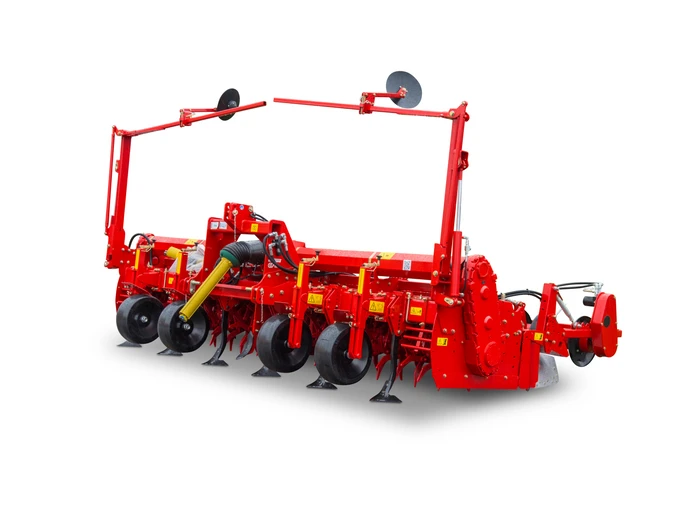

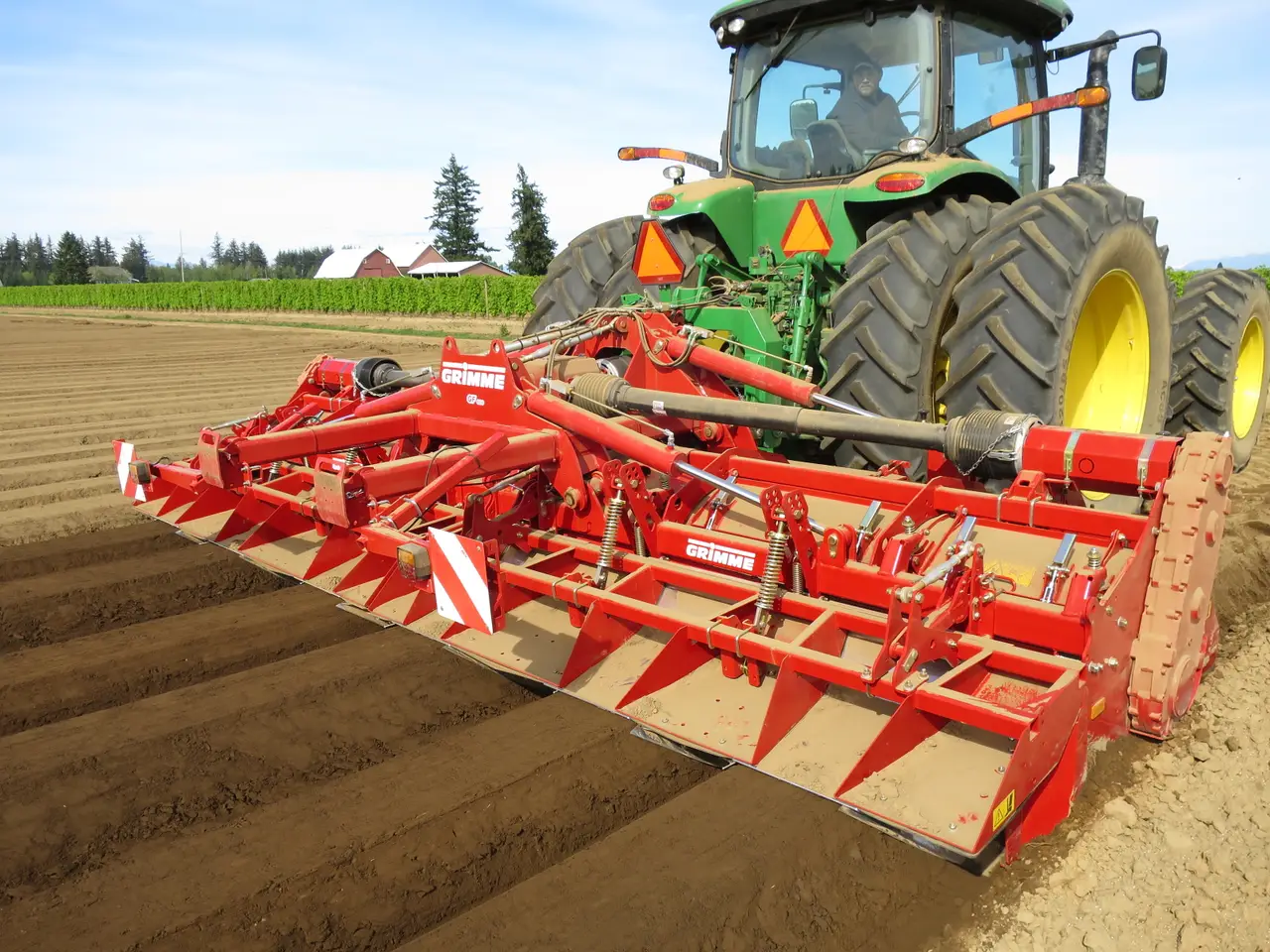

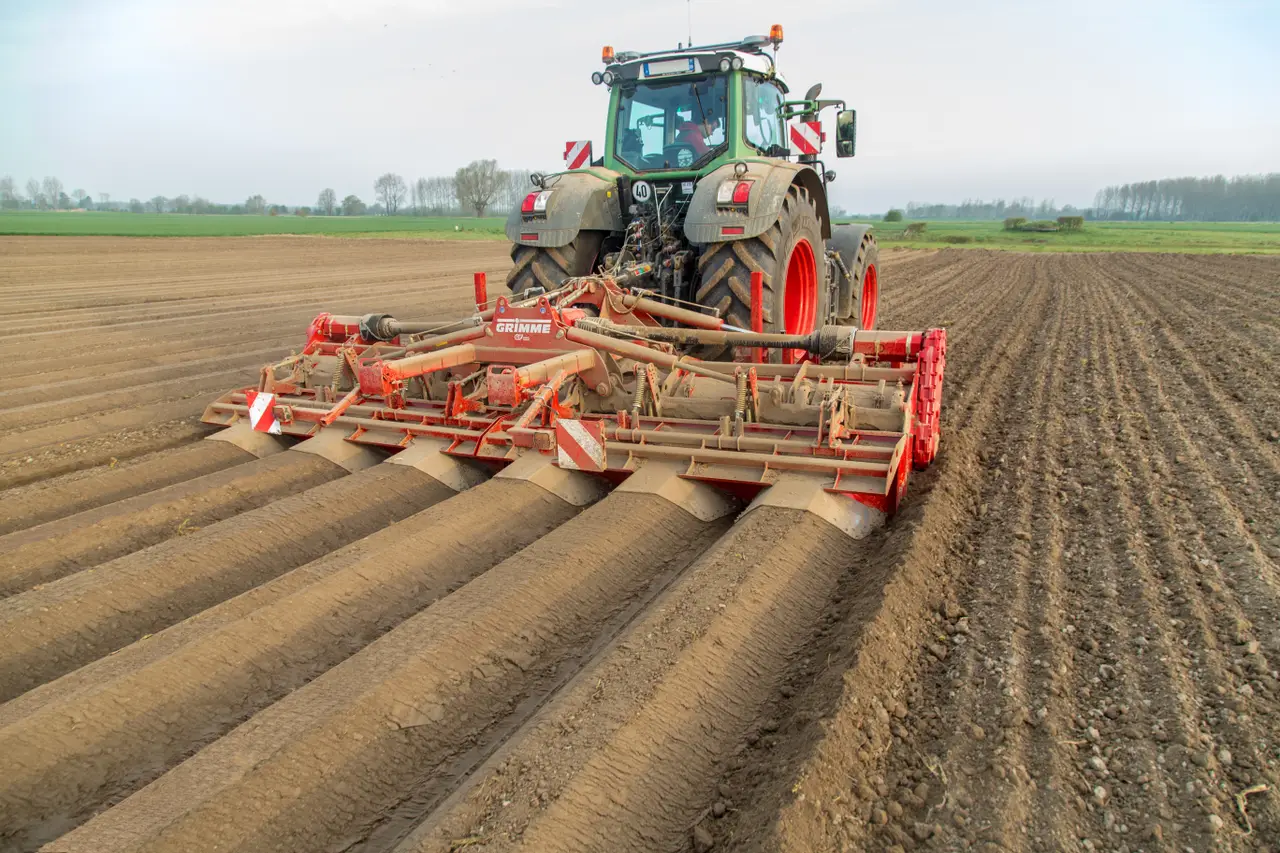

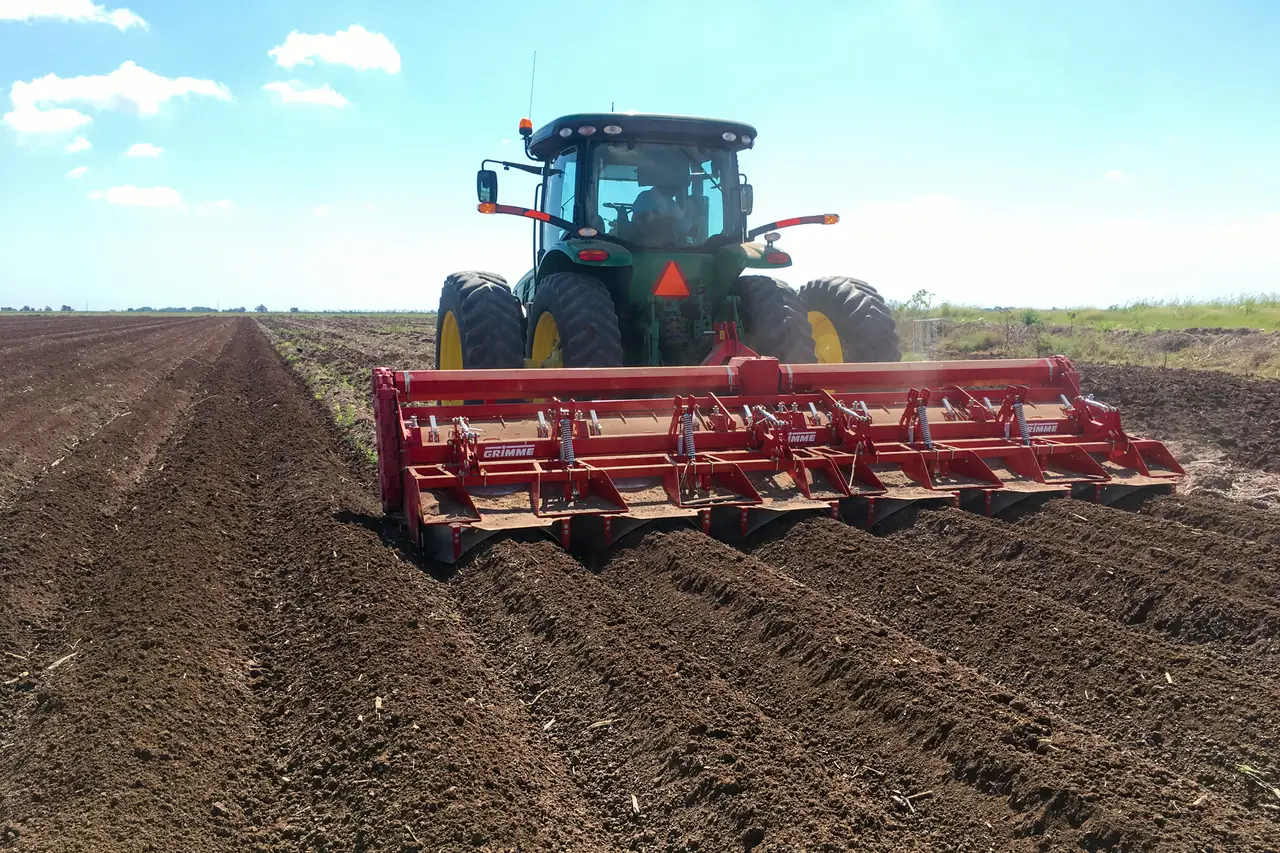

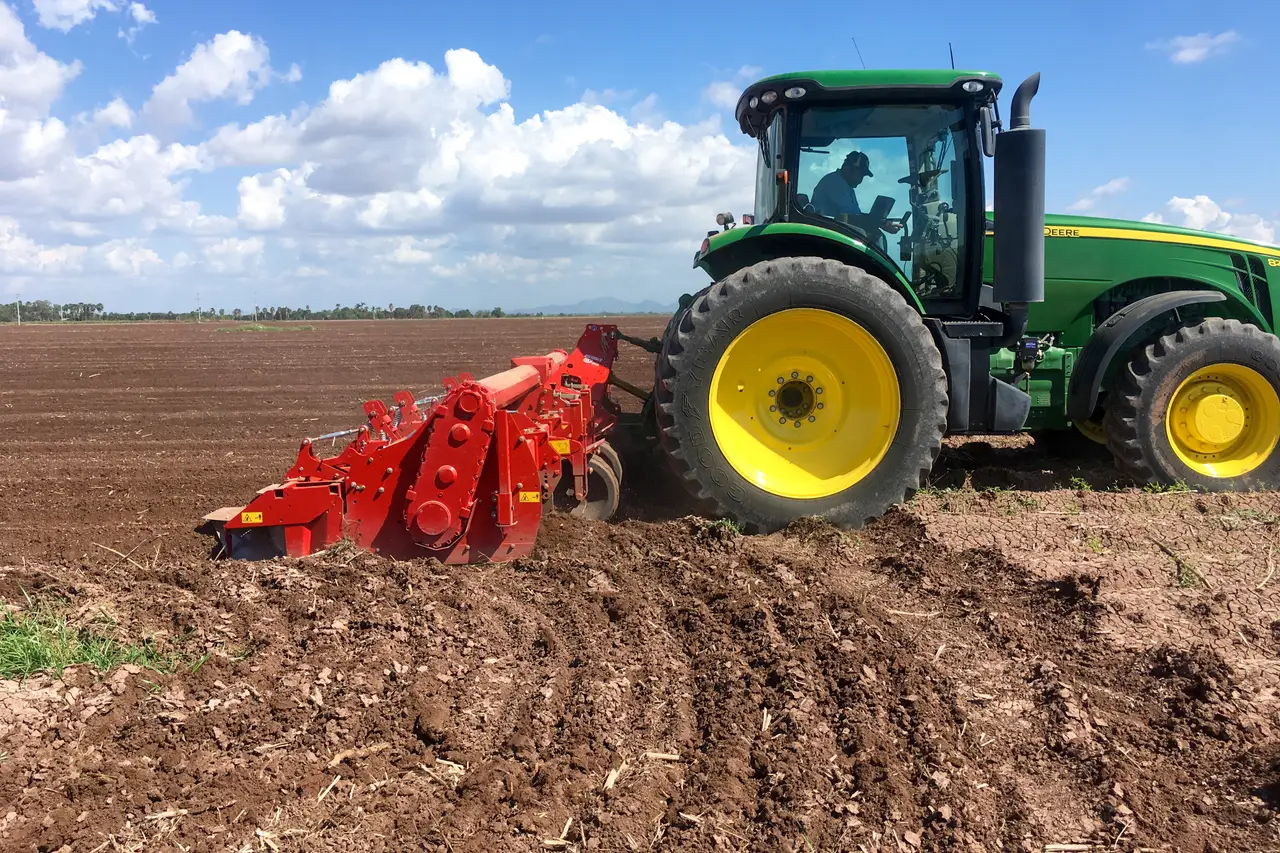

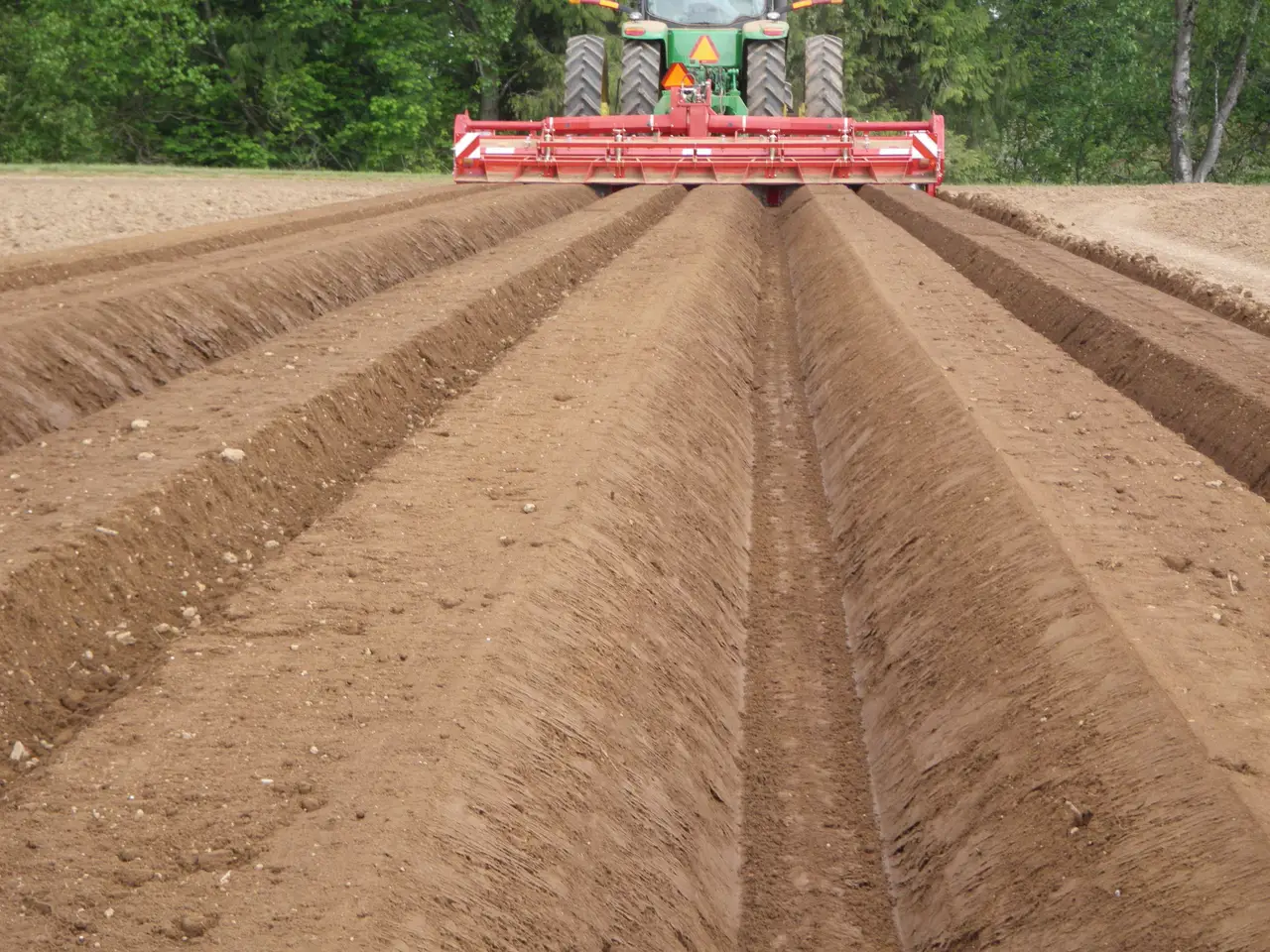

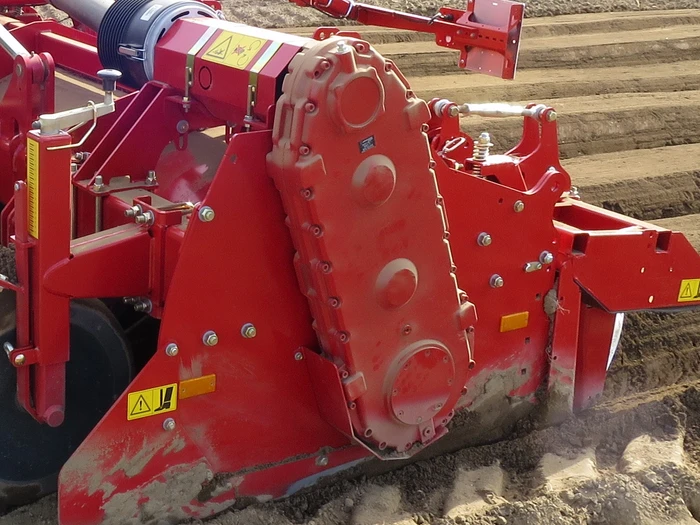

Product Images
