Row independent Soil Cultivation GR 300 / GR 360
Soil Cultivation
Row independent soil cultivation GR 300 / GR 360
The rotary tiller type GR 300, mounted in the rear or in the front of the tractor, is suitable as a full width tiller for an optimum seedbed preparation for the cultivation of various vegetables and potatoes.
An ideal prepared seedbed is the prerequisite for optimum development of the seed resp. planting tubers. Thanks to intensive soil cultivation, the horizon for rooting is optimally prepared so that undisturbed growth of the crop can be ensured.
The large number of tines and the high speed of the rotor produce a well crumbled soil structure in fields without stones. With its smaller rotor diameter the rotary tiller type GR 300 requires less tractor power as the rotary hiller GF 400.
The combination with a GL 420, GL 430 or GL 420 Exacta is also possible.
Product Highlights
Variable use
The GR 300 may be conventionally used as a rear-mounted rotary tiller for crushing clods and trash.
Combined plant protection
Tank system TS 420 on the GR 300 at tractor front. Authorized for liquid chemicals to be applied onto the seed potatoes and/or into the furrow
The ideal seedbed
Full-width soil cultivation for optimum seedbed preparation.
Combining work steps
Soil cultivation, planting and ridge shaping in a single pass.

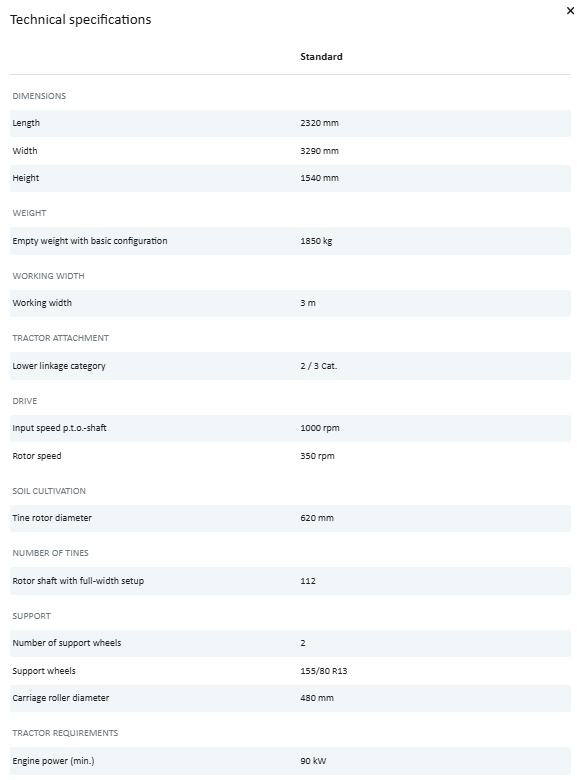

Technical Specifications
All figures, data and facts about this machine. Standard equipment, dimensions, performance and much more.
Rotary Tiller GR 300 with front attachment:
- 3.00 m working width
- Spring loaded housing for less soil sticking
- Rotor shaft for full width tillage
- 112 tines, 50 x 12 mm each, with hard-wearing tips
- Carriage roller Ø 480 mm
- 2 infinitely height adjustable support wheels for depth control
- Soil retention plate incl. ridge shaper
- Three-point linkage Cat. 2 / 3
- “Walterscheid” drive shaft P600, 6 grooves
- Gearbox, 350 rpm, single drive for max. 250 HP
- Side gearbox with spur gears in it´s own housing
Rotary Tiller type GR 300 rear-mounted:
- 3.00 m working width
- Spring loaded housing for less soil sticking
- Rotor shaft for full width tillage
- 112 tines, 50 x 12 mm each, with hard-wearing tips
- Soil retention plate
- Carriage roller Ø 480 mm
- Three-point linkage Cat. 2 / 3
- “Walterscheid” drive shaft P600, 6 grooves
- Gearbox, 350 rpm, single drive for max. 250 HP
- Side gearbox with spur gears in it´s own housing
